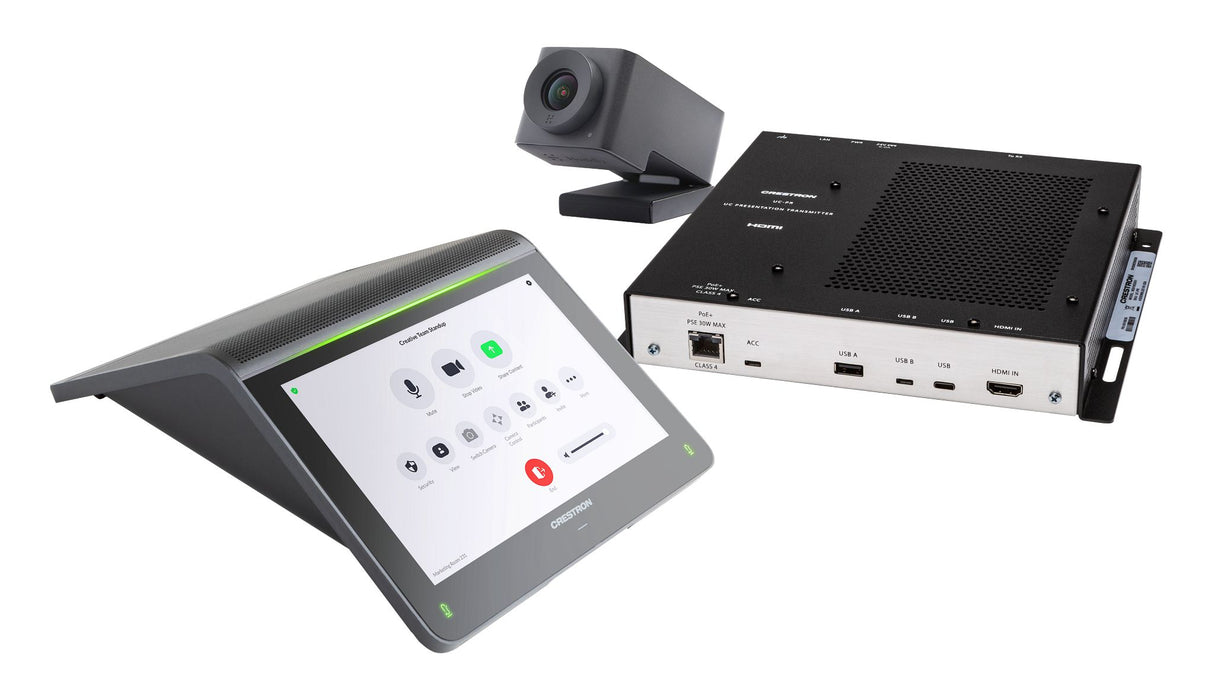

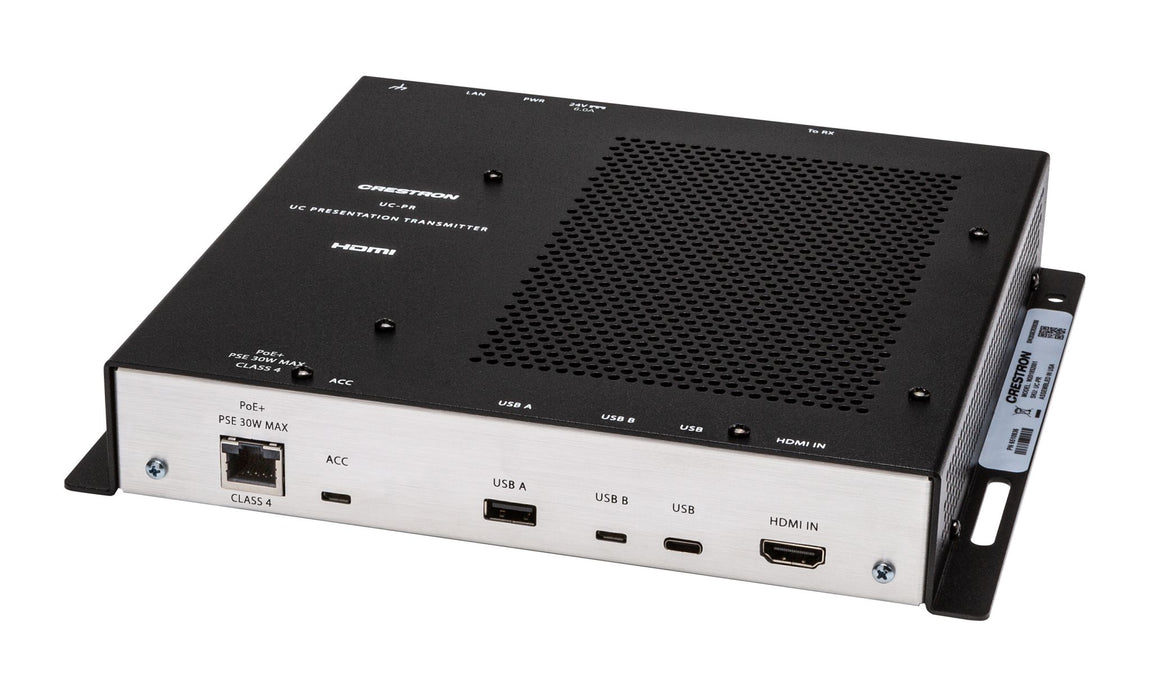

The Crestron UC-BX30-T-WM is an advanced conferencing system designed to bring the full Microsoft Teams Rooms experience to small meeting spaces. It features a wall-mounted 10.1-inch touch screen, a smart soundbar with an integrated camera, and a UC presentation transmitter, providing a seamless and intuitive video conferencing solution. Ideal for enterprise and SMB facilities, this system ensures high-quality audio and video collaboration, enhancing productivity and communication.

Here are the key features of the Crestron UC-BX30-T-WM:

• Native Microsoft Teams® Rooms Experience: Offers a complete and native Microsoft Teams Rooms unified communications experience, facilitating efficient collaboration.

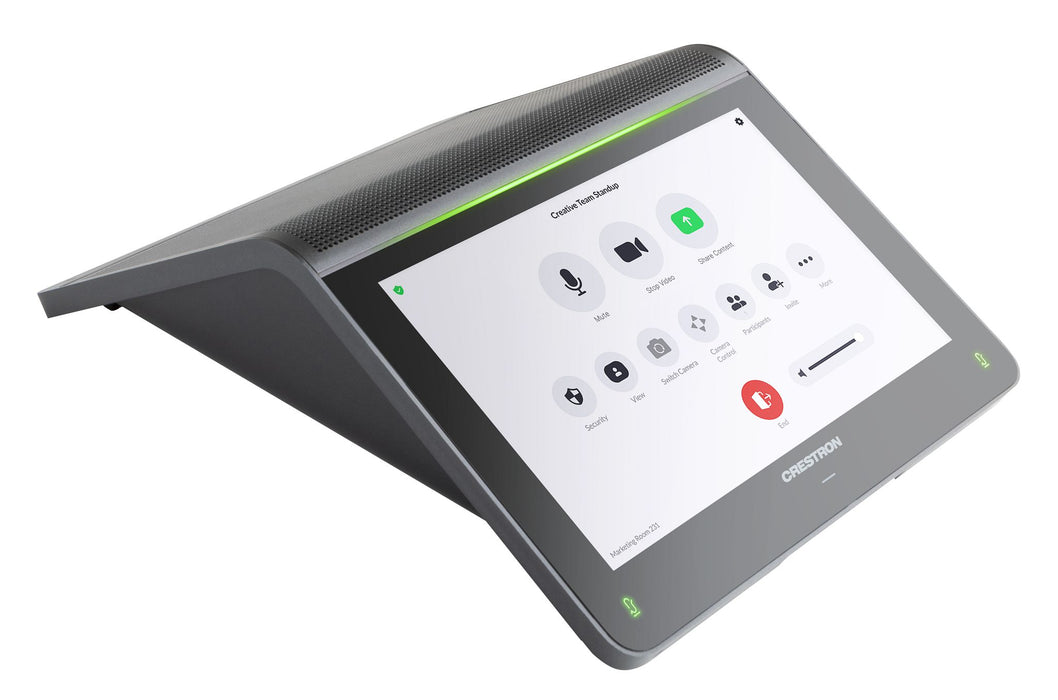

• Intuitive User Interface: Equipped with a 10.1-inch capacitive touch screen (TSW‑1070), providing superior conferencing control and optional room control for lighting, shades, and thermostats.
• High-Quality Audio and Video: Features a smart soundbar with an integrated 12-megapixel camera, ensuring clear audio and sharp video during meetings.

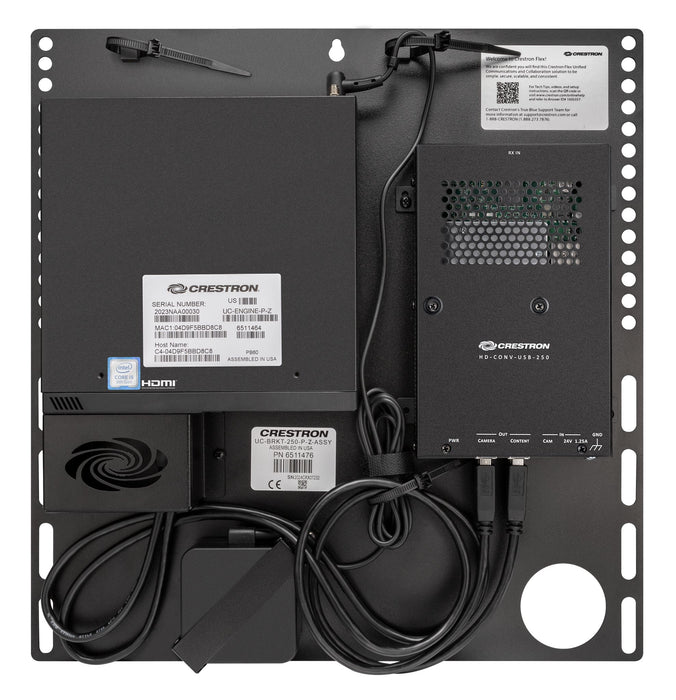

• Simplified Installation: The UC Bracket Assembly comes preassembled, simplifying the installation process and reducing setup time.
• Flexible Display Support: Supports single or dual video displays (not included), allowing customization based on room requirements.

Here are the detailed specifications for the Crestron UC-BX30-T-WM:

Touch Screen: 10.1-inch (257 mm) wall-mounted capacitive touch screen (TSW‑1070-B-S-T-V).

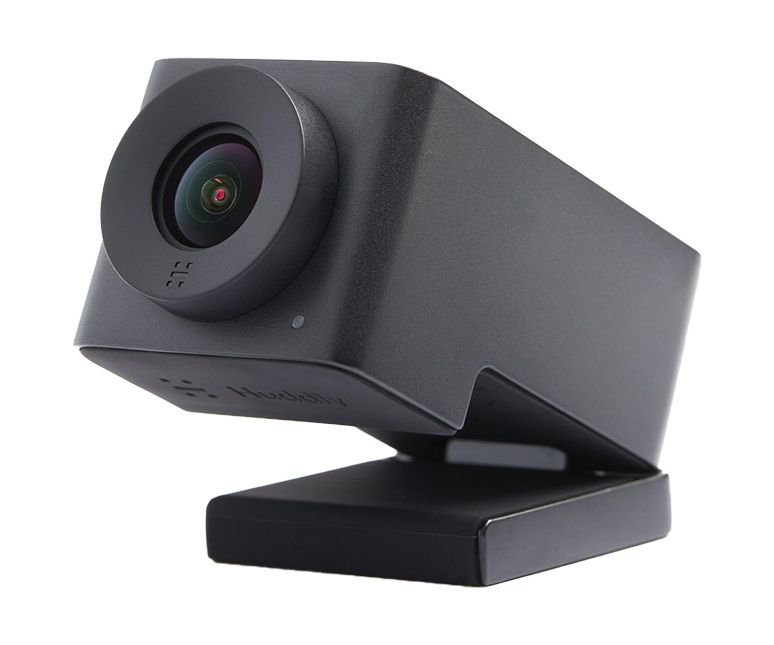

Camera:

• Optics: 12 Megapixel 1/2.3 CMOS sensor with an ultra-wide-angle six-element aspherical glass lens and f/2.8 aperture.
• Field of View: 150º diagonal, 120º horizontal, 90º vertical.
• Autozoom: Genius Framing automatic lossless digital zoom intelligently frames participants.

Audio DSP: Includes acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ, and limiting (fixed); full-duplex IEEE 1329 Type 1 compliant.

Connectivity:

• Analog Audio Input: 2-Channel stereo via 3.5 mm TRS mini-phone jack, fixed level, 1 Vrms maximum per channel.
• Analog Audio Output: 2-Channel stereo via 3.5 mm TRS mini-phone jack, fixed level, 1 Vrms maximum.

Power: 24VDC via external 100–240VAC, 50/60 Hz power pack (model PW‑2420RU).

Enclosure: Lightly textured gunmetal black finish with a plastic housing, perforated stainless steel grilles, die-cast aluminum rear cover, and an integral steel hinged mounting bracket.
