The IV-SAM-VX2-S Automate VX System Series 2 by Crestron is a cutting-edge solution that brings broadcast-quality video production to various settings. By automatically switching between multiple cameras based on the active speaker's location, it creates a dynamic and engaging experience for both in-person and remote participants. The system's Visual AI technology ensures that camera shots are intelligently framed, keeping participants centered and enhancing the overall video quality. With built-in recording and streaming capabilities, along with outputs for video conferencing, the IV-SAM-VX2-S seamlessly integrates into existing workflows, making it ideal for modern communication environments.

The Key Features of the IV-SAM-VX2-S Automate VX System Series 2 by Crestron:

• Voice-Activated Camera Switching: Automatically switches between cameras based on the active speaker's location, providing a studio-like production experience.
• Visual AI Auto-Framing: Utilizes Visual AI to intelligently frame and reframe participants, ensuring they remain centered in the shot.
• High-Definition Video Output: Supports connections with Crestron 1 Beyond Cameras via 3G-SDI or NDI|HX, delivering high-quality video resolutions suitable for conferencing codecs.
• Integrated Recording and Streaming: Offers built-in capabilities to record sessions and stream live to any RTMP server, enhancing content accessibility.
• Customizable Video Layouts: Features an easy-to-use graphic designer tool to create personalized multi-source layouts, including titles, logos, and backgrounds.
• Comprehensive Camera Control: Manages Crestron 1 Beyond PTZ and tracking cameras over IP, simplifying camera operations without additional personnel.

The Detailed Specifications for the IV-SAM-VX2-S Automate VX System Series 2 by Crestron:

Automate VX2 Capabilities:

• Titles, Graphics, Layouts: Supports adding titles, logos, and backgrounds with an intuitive graphic designer tool.
• Program Recording: Records in MP4 format (H.264 codec) with user-selectable bitrates up to 10 Mbps; also supports ISO recording in MOV format.
• Recording Capacity: Equipped with a 316 GB internal SSD for storage.
• Streaming Encoder: Capable of streaming to any RTMP server.
• NDI Support: Handles inputs and program output via NDI|HX.
• Camera Control: Manages Crestron 1 Beyond PTZ and tracking cameras over IP.
• System Control: Offers REST API over Network (TCP) for third-party control.
• Compatible Codecs: Outputs via 3G-SDI (includes SDI to USB-A 3.0 converter) for connection to external conferencing codecs running platforms like Microsoft Teams and Zoom Rooms.
• Configuration: Features browser-based configuration with secure login and user administration, including customizable presets for various scenarios.
• Visual AI: Provides AutoFraming and Reframing with Crestron 1 Beyond Cameras.

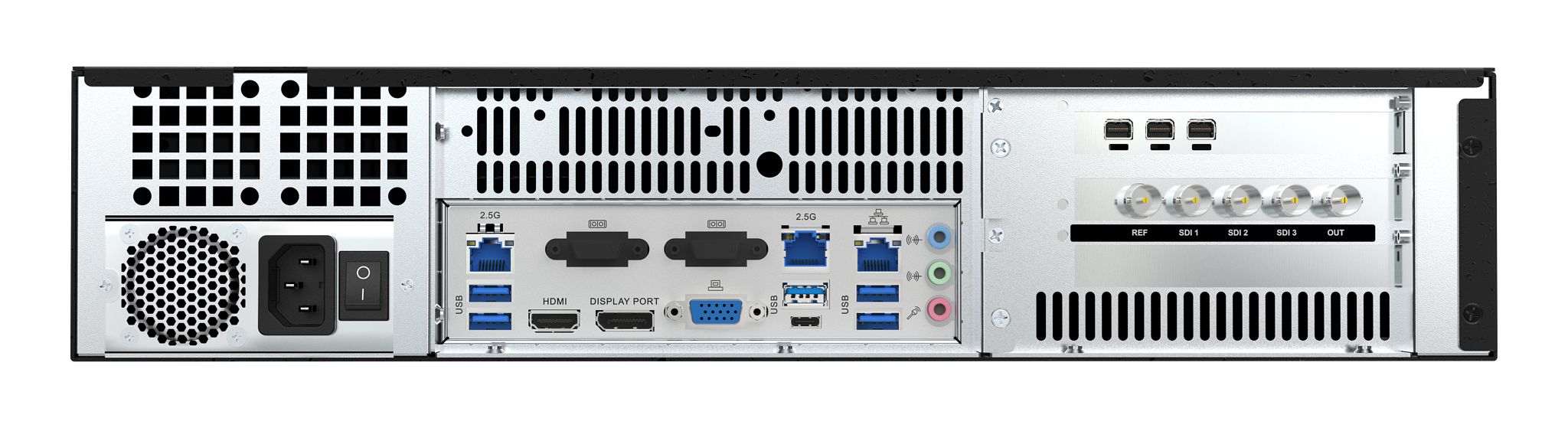

Connectivity:

• Ethernet: Supports 100/1000/2500 Mbps connections.
• USB Ports:

Video Inputs:

• SDI Inputs: (3) 12-bit 3G-SDI connectors.
• NDI|HX Inputs: Supports up to 5 NDI|HX sources.
• USB Camera Input: Supports one USB camera connection via USB Type-A or Type-C (only one active at a time).

Video Outputs:

• SDI Output: (1) HD-SDI output.
• NDI|HX Output: (1) NDI|HX output.
• Virtual Webcam: Supports virtual webcam output at 1080p or 720p resolutions.

Audio:

• Audio Input: (1) Unbalanced line-level audio input (3.5 mm TRS connector).
• Audio Output: (1) Unbalanced line-level audio output (3.5 mm TRS connector).
• Dante® Networking: Supports up to 32x32 audio channels with network-based audio integration.
