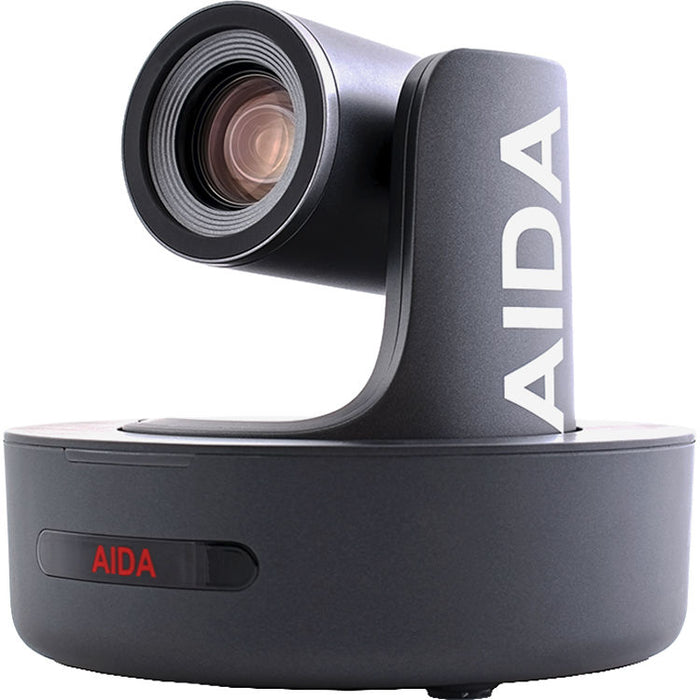

AIDA Imaging PTZ-NDI-X20 Full HD NDI|HX Broadcast PTZ Camera with 20x Optical Zoom

AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 20x Optical Zoom

by Aida Imaging
Availability:
In stock 3-5 days
$1,802.00 - $1,802.00
$1,802.00
$1,802.00 - $1,802.00
$1,802.00

SKU: PTZ-NDI-X20

  • Overview
  • Features
  • Specifications

The AIDA Imaging PTZ-NDI-X20 is a professional Full HD broadcast PTZ camera designed for modern IP production workflows. Featuring a powerful 20x optical zoom lens, integrated NDI|HX capability, and simultaneous HDMI, 3G-SDI, and IP streaming outputs, this camera delivers exceptional flexibility for live production, corporate AV, worship, education, and sports environments.

Engineered for seamless integration into NDI ecosystems, the PTZ-NDI-X20 enables low-latency video transmission over standard networks while maintaining broadcast-quality 1080p performance. Power over Ethernet (PoE) simplifies installation by delivering power, video, control, and audio over a single cable, making it ideal for clean, scalable deployments.

With smooth, precise pan-tilt-zoom movement, advanced image controls, and support for industry-standard control protocols, the PTZ-NDI-X20 is built for both standalone operation and multi-camera production systems. Whether integrated into a TriCaster®, vMix®, or other IP-based production environment, this camera delivers professional results with installation efficiency.

The Key Features of the AIDA Imaging PTZ-NDI-X20:

  • Full HD 1920x1080 resolution up to 60fps
  • Integrated NDI|HX for low-latency IP video production
  • 20x optical zoom lens for tight shots and large venue coverage
  • Simultaneous HDMI, 3G-SDI, and IP streaming outputs
  • Power over Ethernet (PoE) for single-cable installation
  • Smooth and precise pan, tilt, and zoom motor control
  • Multiple IP streaming protocols including RTSP and RTMP
  • VISCA over IP and RS-232/RS-485 control support
  • Built-in web interface for remote configuration and control
  • Ideal for broadcast, corporate AV, worship, education, and sports production

The Detailed Specifications for the AIDA Imaging PTZ-NDI-X20:

  • Image Sensor: 1/2.8” Progressive CMOS
  • Effective Resolution: 1920 x 1080 (Full HD)
  • Frame Rates: Up to 1080p60
  • Optical Zoom: 20x
  • Digital Zoom: 16x (variable)
  • Minimum Illumination: 0.5 lux (typical)
  • Video Outputs: NDI|HX, 3G-SDI, HDMI, IP Stream
  • IP Streaming Protocols: NDI|HX, RTSP, RTMP
  • Control Protocols: VISCA over IP, VISCA RS-232/RS-485
  • Pan Range: ±170° (typical)
  • Tilt Range: -30° to +90° (typical)
  • Network Interface: RJ45 (10/100/1000 Mbps)
  • Power: PoE (IEEE 802.3af) or 12V DC
  • Audio: Embedded via IP
  • Mounting: Desktop or ceiling mount (invert mode supported)
  • Operating Temperature: 0°C – 40°C

No video available for this product.
