AJA 1-Channel 12G-SDI to Single-Mode ST Fiber Transmitter
Availability:
In stock 3-5 days
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.
MODEL: FIDO-T-12G-ST
SKU: FIDO-T-12G-ST

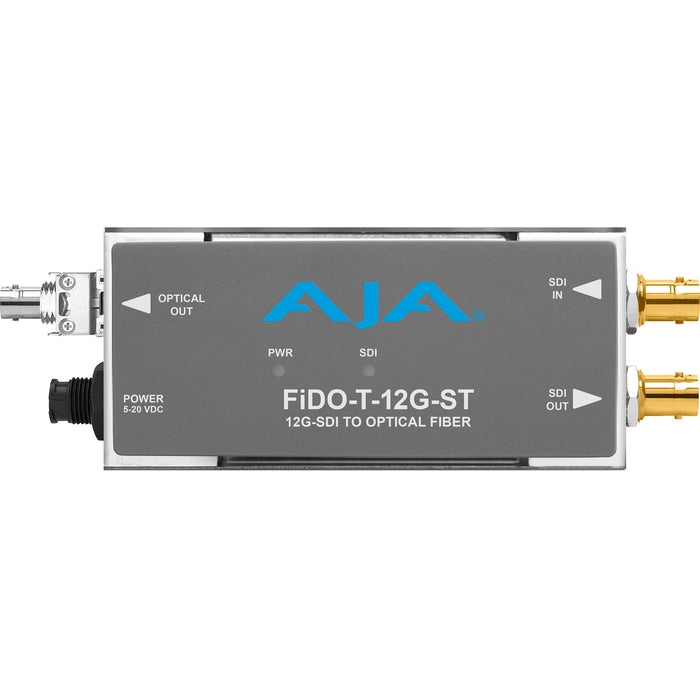

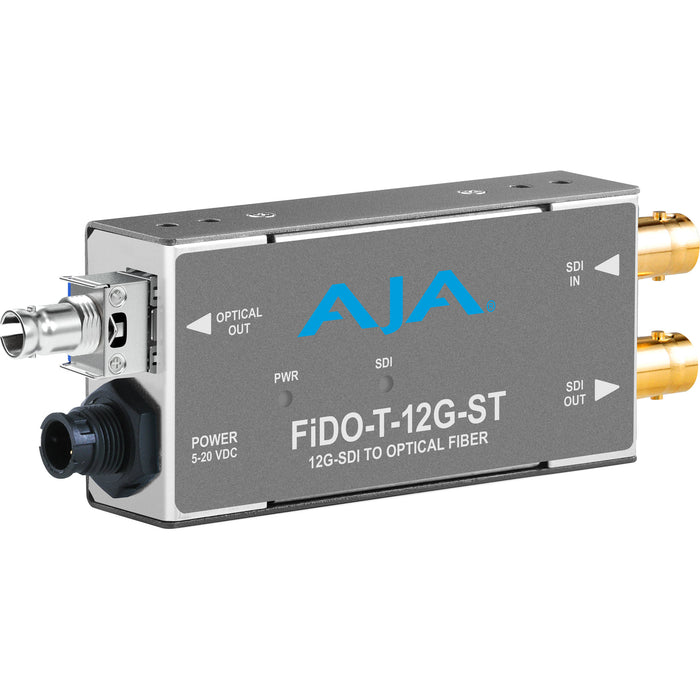

The AJA FiDO-T-12G-ST is a compact, single-channel 12G-SDI to fiber optic transmitter featuring an ST connector. It enables long-distance transmission of high-resolution 4K/UltraHD video signals over single-mode fiber, making it ideal for professional broadcast, live production, and AV applications requiring robust and reliable signal delivery.
- Single-channel 12G-SDI to fiber optic conversion
- Supports resolutions up to 4K/UltraHD
- 1x 12G-SDI BNC input
- 1x ST fiber optic output (single-mode)
- Compact, rugged enclosure for field or studio use
- Plug-and-play operation
- Supports SDI formats: 12G/6G/3G/HD/SD
- Equalized and re-clocked SDI input
- Locking 2-pin power connector
- Low power consumption
- Compatible with standard single-mode fiber systems
- Ideal for professional broadcast and AV environments
- Video Formats: 12G/6G/3G/1.5G/270 Mbps SDI
- Input: 1x 12G-SDI BNC
- Output: 1x ST fiber optic (single-mode)
- Reclocking: Yes, on SDI input
- Max Resolution: Up to 4K/UltraHD 60p
- Fiber Type: Single-mode
- Wavelength: 1310 nm
- Operating Distance: Up to 10 km (6.2 miles) with standard single-mode fiber
- Power: +5 to +20 VDC, 2.5 Watts max
- Power Connector: Locking 2-pin
- Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
- Weight: 0.4 lb (0.18 kg)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
