AJA 1-Channel 12G-SDI to Single Mode ST Fiber Transmitter SFP
Availability:
In stock 3-5 days
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.
MODEL: FIBERST-1TX-12G
SKU: FIBERST-1TX-12G

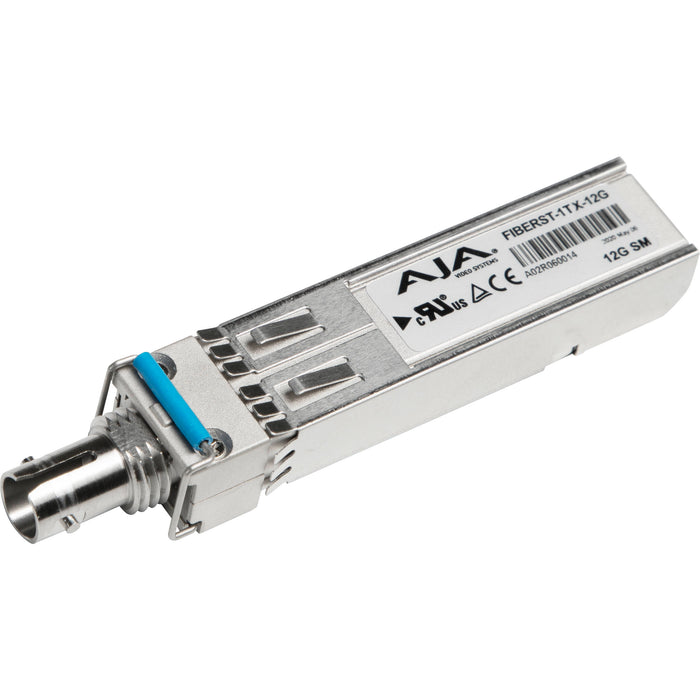

The AJA FiDO-1T-ST-12G is a compact, single-channel 12G-SDI to ST fiber transmitter, designed for high-resolution video transport over long distances. It supports 4K/UltraHD signals, offering reliable, real-time conversion with minimal latency, ideal for broadcast, production, and professional AV applications.
- Converts 12G-SDI to ST fiber
- Supports resolutions up to 4K/UltraHD
- Compact and rugged design
- Single-channel transmission
- Compatible with all SMPTE optical fiber standards
- Real-time, low-latency conversion
- Uses standard ST optical connectors
- Ideal for long-distance signal extension
- Supports embedded audio
- Locking power connector for secure operation
- Video Input: 1x 12G-SDI BNC, SMPTE 2082
- Video Output: 1x ST optical fiber
- Supported Resolutions: Up to 4K/UltraHD (4096x2160/3840x2160)
- Audio Support: Embedded SDI audio
- Fiber Type: Single-mode
- Wavelength: 1310 nm
- Max Cable Length: Up to 10 km (single-mode fiber)
- Power: +5-20V DC, 2.5W
- Connector Type: ST
- Dimensions: 5.8" x 1.0" x 0.8" (147mm x 25mm x 20mm)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
