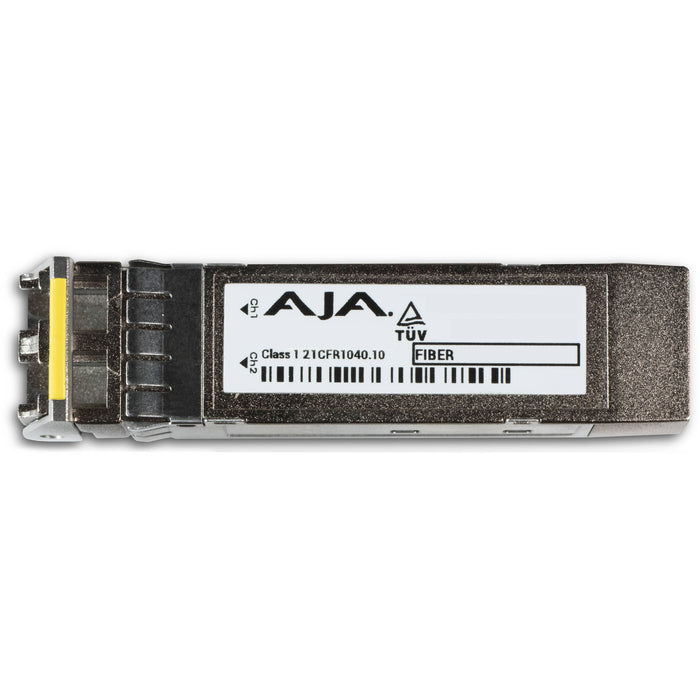

Dual-channel 12G-SDI fiber optic receiver SFP with LC connectors for long-distance high-resolution video signal reception.

AJA 12G/6G-SDI Dual Fiber Single-Mode LC Receiver

by AJA
Availability:
In stock 3-5 days
$825.00 - $825.00
$825.00
$825.00 - $825.00
$825.00

MODEL: FIBERLC-2RX-12G

SKU:  FIBERLC-2RX-12G
  • Overview
  • Features
  • Specifications

The AJA FIBERLC-2RX-12G is a dual-channel 12G-SDI single-mode LC fiber receiver in an SFP form factor, designed for high-resolution video signal reception over long distances. Featuring two LC inputs, it supports up to 4K/UltraHD 60p and is ideal for integration into AJA FS4 and other compatible systems requiring compact, high-performance fiber connectivity.

  • Dual-channel 12G-SDI fiber optic reception
  • SFP form factor for modular system integration
  • 2x LC fiber optic inputs (single-mode)
  • Supports SDI formats: 12G/6G/3G/HD/SD
  • Supports resolutions up to 4K/UltraHD 60p
  • Compatible with AJA FS4 and other SFP-based systems
  • Hot-swappable for flexible deployment
  • Compact and energy-efficient design
  • Ideal for high-resolution, long-distance video workflows
  • Designed for use in professional AV and broadcast environments
  • Type: 2-Channel 12G-SDI Single-Mode LC Fiber Receiver SFP
  • Form Factor: SFP (Small Form-factor Pluggable)
  • Inputs: 2x LC fiber optic (single-mode)
  • Outputs: 2x 12G-SDI
  • Supported Formats: 12G/6G/3G/HD/SD-SDI
  • Max Resolution: Up to 4K/UltraHD 60p
  • Wavelength: 1310 nm
  • Operating Distance: Up to 10 km (6.2 miles) with standard single-mode fiber
  • Compatibility: AJA FS4, FS-HDR, and other SFP-compatible systems
  • Hot-Swappable: Yes
  • Power Consumption: Low
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
