Dual-channel 3G-SDI to fiber optic transmitter with LC multimode connectors for short-distance HD video signal transmission.

AJA 2-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter

by AJA
Availability:
In stock 3-5 days
$1,109.00 - $1,109.00
$1,109.00
$1,109.00 - $1,109.00
$1,109.00

MODEL: FIDO-2T-MM

SKU: FIDO-2T-MM


  • Overview
  • Features
  • Specifications

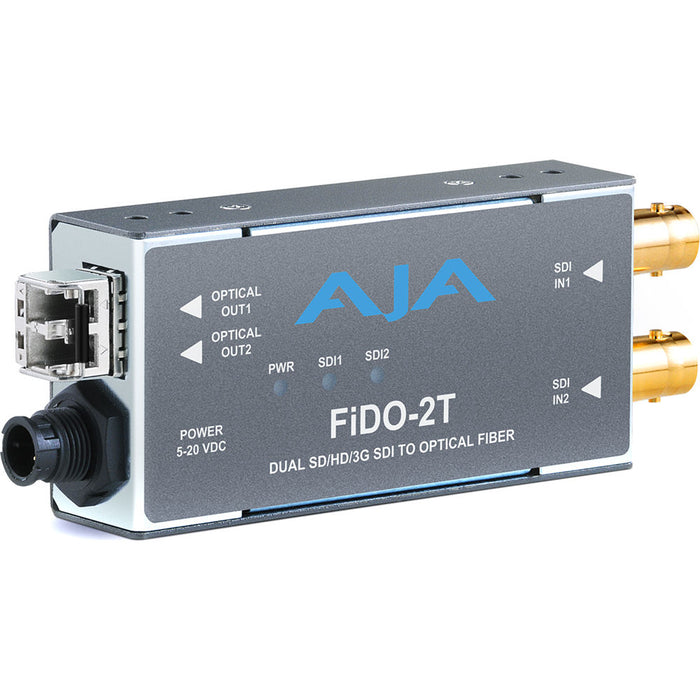

The AJA FiDO-2T-MM is a dual-channel 3G-SDI to fiber optic transmitter featuring LC multimode connectors, designed for short-distance HD video transmission. With two independent 3G-SDI inputs and two LC multimode outputs, it offers a compact, reliable solution ideal for high-density AV and broadcast applications within confined environments.

  • Dual-channel 3G-SDI to fiber optic conversion
  • Two independent 3G-SDI BNC inputs
  • Two LC fiber optic outputs (multimode)
  • Supports SDI formats: 3G/HD/SD
  • Compact and rugged design for professional use
  • Reclocked SDI inputs for stable signal transmission
  • Plug-and-play operation
  • Compatible with standard multimode fiber systems
  • Locking 2-pin power connector
  • Low power consumption
  • Ideal for short-distance, high-density HD video workflows
  • Video Formats: 3G/HD/SD-SDI
  • Inputs: 2x 3G-SDI BNC (independent channels)
  • Outputs: 2x LC fiber optic (multimode)
  • Reclocking: Yes, on SDI inputs
  • Max Resolution: Up to 1080p 60
  • Fiber Type: Multimode
  • Wavelength: 850 nm
  • Operating Distance: Up to 300 meters (984 feet) with standard multimode fiber
  • Power: +5 to +20 VDC, 3 Watts max
  • Power Connector: Locking 2-pin
  • Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
  • Weight: 0.4 lb (0.18 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
