AJA 3G-SDI to HDMI 2.0 Conversion Card with DashBoard Support
Availability:
In stock 3-5 days
Original price
$835.00
-
Original price
$835.00
Original price
$835.00
$835.00
-
$835.00
Current price
$835.00
| /
MODEL: OG-HI5-4K-PLUS
SKU: OG-HI5-4K-PLUS

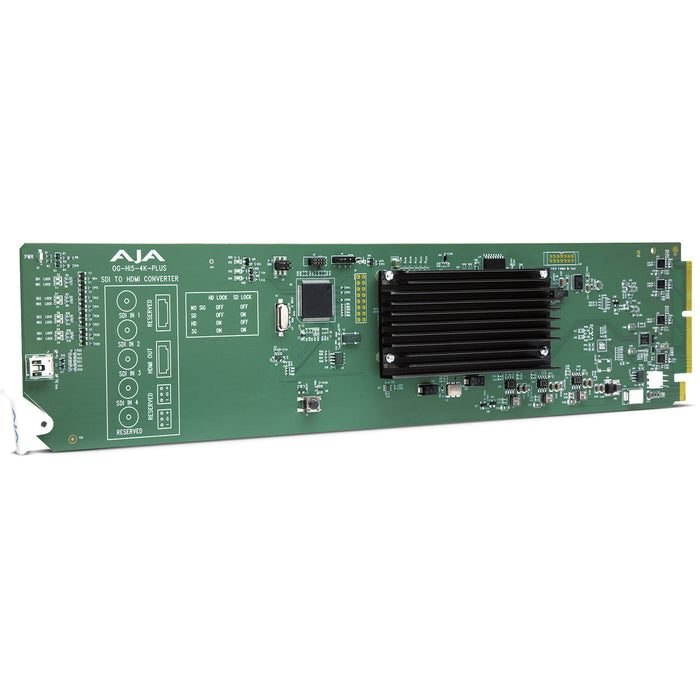

The AJA OG-Hi5-4K-Plus is an openGear-compatible converter card designed to bridge professional 4K/UltraHD workflows with HDMI 2.0 displays. It facilitates seamless monitoring by converting Quad 3G-SDI or Dual 3G-SDI signals to HDMI 2.0, supporting resolutions up to 4K at 60p. The card generates HDR metadata compliant with HDMI v2.0a/CTA-861.3, including support for HDR10 and Hybrid Log-Gamma (HLG), ensuring accurate color representation on compatible displays. Additionally, it supports embedded 8-channel 24-bit audio and passes through compressed audio formats like AC-3 and E-AC-3, including Dolby Digital Plus with Atmos. Remote monitoring and control are enabled via AJA’s DashBoard software, compatible with Windows, macOS, and Linux platforms. The OG-Hi5-4K-Plus is ideal for integrating SDI-based 4K sources into HDMI 2.0-compatible monitoring environments.
- openGear Compatibility: Designed to fit into openGear 2RU frames, requiring two slots.
- 4K/UltraHD Support: Converts Quad 3G-SDI to HDMI 2.0b at up to 4K 60p.
- HDR Metadata Handling: Passes through HDR10 and Hybrid Log-Gamma (HLG) metadata; optional override available.
- Color Formats: Supports 4:2:2, 4:4:4, and 4:2:0 HDMI 2.0b output.
- Audio Support: Passes through 8-channel 24-bit embedded audio; supports AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos.
- Remote Control: Configurable via DashBoard network control software on Windows, macOS, and Linux.
- Power Consumption: Operates at 12 watts maximum.
- Hot-Swappable: Allows for replacement without powering down the system.
- Rear I/O Card Included: Facilitates easy connectivity.
- Warranty: Comes with a 5-year limited warranty.
- Video Input: 4x 3G-SDI BNC (SMPTE-259M, 292M, 424M)
- Video Output: 1x HDMI 2.0b Type A
- Resolution Support: 4K (4096x2160), UltraHD (3840x2160), 2K (2048x1080), HD (1920x1080), SD (720x576, 720x480)
- Frame Rates Supported: Up to 60p for 4K/UltraHD
- Color Formats: 4:2:2, 4:4:4, 4:2:0, RGB (SMPTE or Full level)
- Bit Depth: 8-bit, 10-bit, 12-bit
- Pixel Mapping: Two Sample Interleave (2SI) or Square Division (Quadrant)
- HDR Support: HDR10 and Hybrid Log-Gamma (HLG)
- Audio Support: 8-channel 24-bit embedded audio
- Compressed Audio Pass-Through: AC-3 (Dolby Digital), E-AC-3 (Dolby Digital Plus), including DD+ Atmos
- Control and Monitoring: Ross DashBoard software via Ethernet (Windows, macOS, Linux)
- Power Consumption: 12W maximum
- Frame Compatibility: openGear 2RU frames (requires two slots)
- Rear I/O Card: Included
- Hot-Swappable: Yes
- Warranty: 5-year limited warranty
