Four-channel 3G-SDI to fiber optic transmitter with LC multimode connectors for high-density HD video signal transmission.

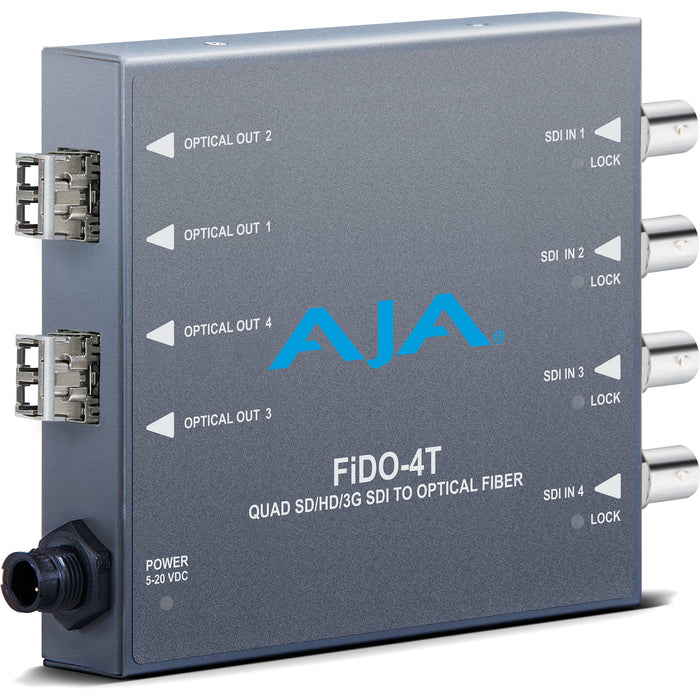

AJA 4-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter

by AJA
Availability:
In stock 3-5 days
$3,645.00 - $3,645.00
$3,645.00
$3,645.00 - $3,645.00
$3,645.00

MODEL: FIDO-4T-MM

SKU:  FIDO-4T-MM


  • Overview
  • Features
  • Specifications

The AJA FiDO-4T-MM is a four-channel 3G-SDI to fiber optic transmitter featuring LC multimode connectors. Designed for high-density signal transport, it enables reliable transmission of HD video over shorter fiber runs, making it ideal for professional environments where space and efficiency are key, such as broadcast facilities and AV installations.

  • 4-channel 3G-SDI to fiber optic conversion
  • Four independent 3G-SDI BNC inputs
  • Four LC fiber optic outputs (multimode)
  • Supports SDI formats: 3G/HD/SD
  • Compact and rugged design for professional use
  • Reclocked SDI inputs for signal integrity
  • Plug-and-play operation
  • Compatible with standard multimode fiber systems
  • Locking 2-pin power connector
  • Low power consumption
  • Ideal for short-run, high-density HD video workflows
  • Video Formats: 3G/HD/SD-SDI
  • Inputs: 4x 3G-SDI BNC (independent channels)
  • Outputs: 4x LC fiber optic (multimode)
  • Reclocking: Yes, on all SDI inputs
  • Max Resolution: Up to 1080p 60
  • Fiber Type: Multimode
  • Wavelength: 850 nm
  • Operating Distance: Up to 300 meters (984 feet) with standard multimode fiber
  • Power: +5 to +20 VDC, 5 Watts max
  • Power Connector: Locking 2-pin
  • Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
  • Weight: 0.5 lb (0.23 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
