AJA C10DA compact 1x6 analog video distribution amplifier with adjustable gain and support for composite or component video signals.

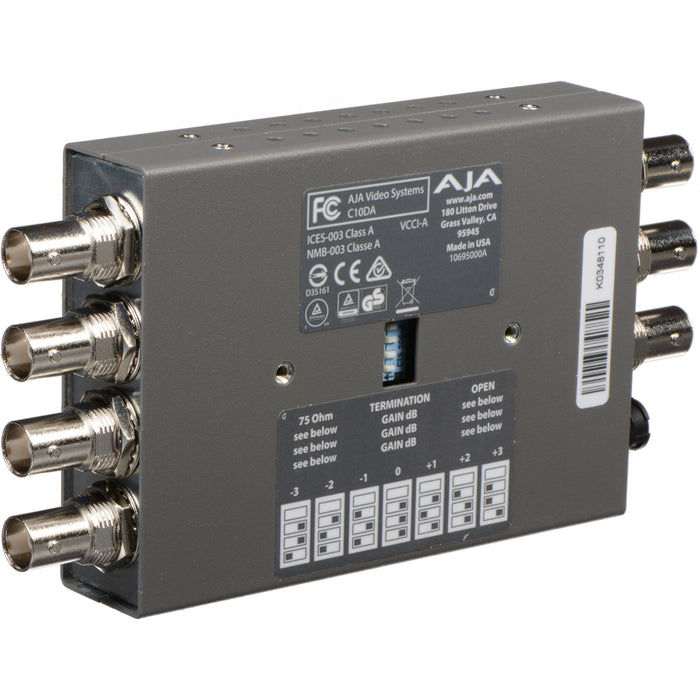

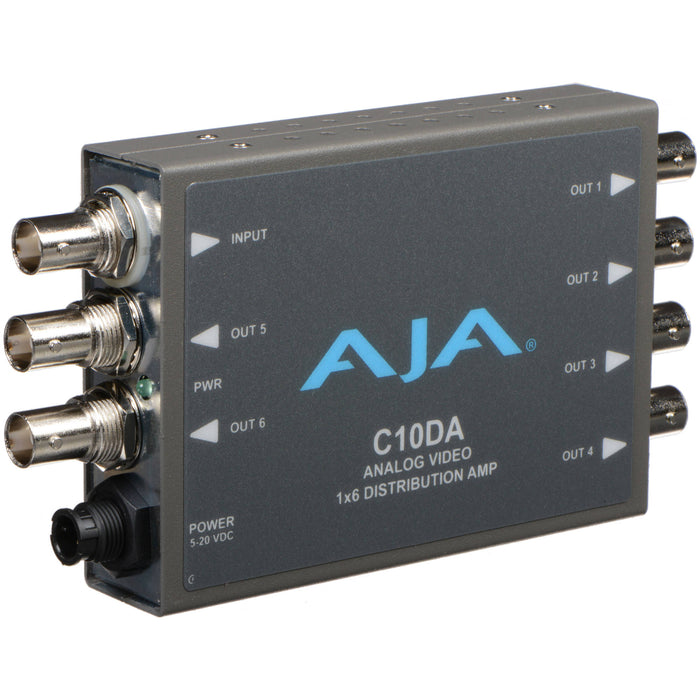

AJA C10DA Analog BNC 1x6 Distribution Amplifier

by AJA
Availability:
In stock 3-5 days
$229.00 - $229.00
$229.00
$229.00 - $229.00
$229.00

MODEL: C10DA

SKU: C10DA


  • Overview
  • Features
  • Specifications

The AJA C10DA is a compact 1x6 analog video distribution amplifier designed for composite or component video signals. It features one input and six individually buffered outputs with adjustable gain control, ensuring clean and consistent video distribution. Ideal for broadcast, post-production, and AV environments, the C10DA supports NTSC, PAL, and component formats, offering reliable signal splitting in a compact form factor.

  • 1x6 analog video distribution amplifier
  • Supports composite and component video signals
  • Compatible with NTSC, PAL, and component formats
  • Adjustable gain control via trim pot
  • Individually buffered outputs for signal integrity
  • Auto-terminating input for ease of use
  • Compact and portable design
  • Includes universal power supply
  • 5-year warranty
  • Video Input:
  • 1x analog video BNC (composite or component)
  • Auto-terminating 75Ω
  • Video Outputs:
  • 6x analog video BNC
  • Individually buffered
  • Supported Formats:
  • NTSC
  • PAL
  • Component video
  • Gain Control:
  • Adjustable via gain trim pot
  • Return Loss:
  • 40 dB to 10 MHz
  • Video Bandwidth:
  • 300 MHz, -3 dB
  • Differential Gain:
  • <0.2%
  • Differential Phase:
  • <0.2°
  • Power:
  • +5 to +20 VDC, 2.5 Watts
  • Locking power connector
  • Universal power supply included
  • Dimensions:
  • 5.8" x 3.1" x 1.0" (147 x 79 x 25 mm)
  • Weight:
  • 0.3 lb (0.14 kg)
  • Operating Temperature:
  • 0°C to 40°C (32°F to 104°F)
  • Humidity:
  • 10–90% non-condensing
  • Warranty:
  • 5 years
