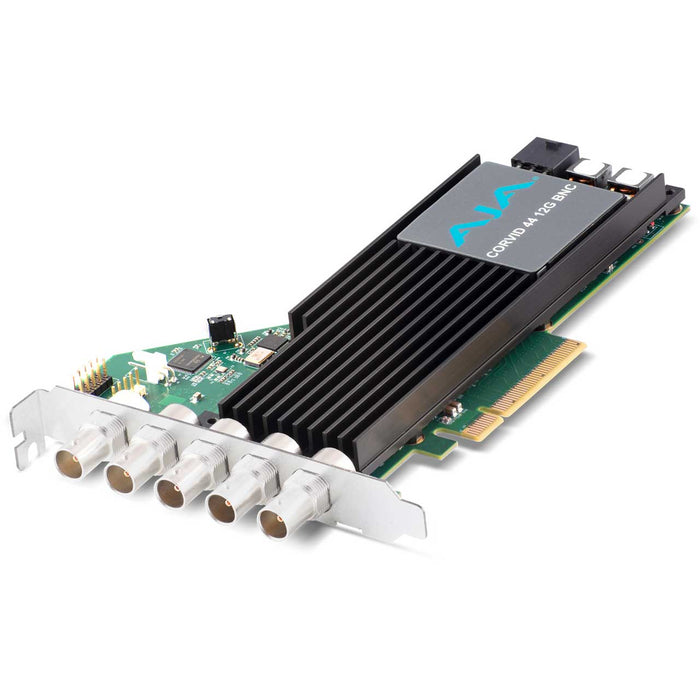

AJA CRV44-12G-R0-22 12G-SDI PCIe 3.0 x8 I/O card featuring four bidirectional full-size BNC connectors, passive cooling, and tall bracket design.

AJA CRV44-12G-R0-22 12G-SDI Multi-Format 8K/4K PCIe I/O Card -Tall Bracket-Fanless-Full Size BNC - No Cables

by AJA
Availability:
In stock 3-5 days
$3,959.00 - $3,959.00
$3,959.00
$3,959.00 - $3,959.00
$3,959.00

MODEL: CRV44-12G-R0-22

SKU: CRVV-12G-R0-22
  • Overview
  • Features
  • Specifications

The AJA CRV44-12G-R0-22 is a 12G-SDI PCIe 3.0 x8 I/O card designed for professional video workflows. It features four bidirectional full-size BNC connectors and supports resolutions up to 8K at 60p. The card includes passive cooling and a tall bracket, making it ideal for high-performance video production and broadcast environments.

  • Four bidirectional full-size 12G-SDI BNC connectors
  • Supports resolutions up to 8K at 60p
  • PCIe 3.0 x8 form factor
  • Passive cooling for efficient heat dissipation
  • Tall bracket included for easy installation
  • Ideal for high-performance video workflows
  • Compatible with a wide range of video formats
  • Designed for professional broadcast and production environments
  • Interface: PCIe 3.0 x8
  • Connectors: 4x bidirectional 12G-SDI full-size BNC
  • Cooling: Passive (fanless)
  • Bracket: Tall
  • Maximum Resolution: 8K (8192 x 4320) at 60p
  • Color Depth: Up to 12-bit RGB 4:4:4 and 10-bit YCbCr 4:2:2
  • Frame Rates: Supports 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, and 60 fps
  • Audio: 16 channels embedded per SDI connection
  • Reference Input: Mini-BNC
  • RS-422 Serial Control: Via internal header
  • LTC Input: Via reference input or internal header
  • Compatibility: AJA SDK for Windows, macOS, and Linux
  • Warranty: 3-year limited
