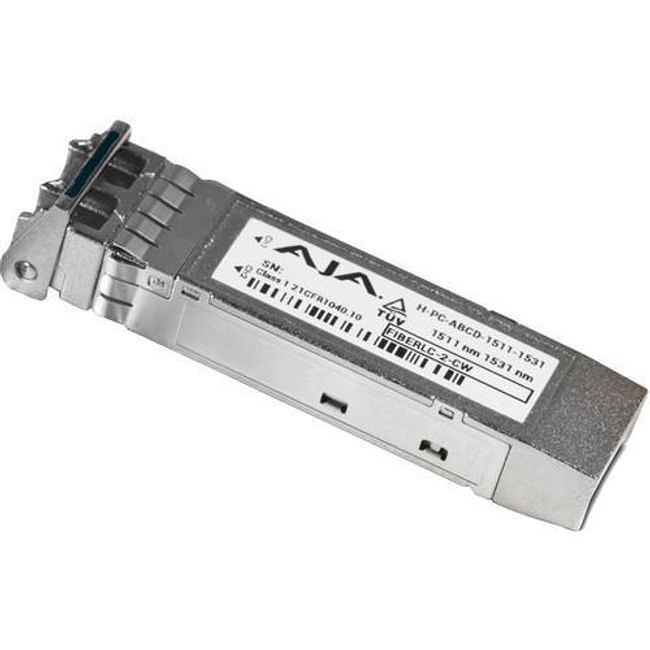

AJA FIBERLC-1-TX-R0 1-Channel 3G-SDI Single Mode LC Fiber Transmitter SFP
Availability:
In stock 3-5 days
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.
MODEL: FIBERLC-1-TX
SKU: FIBERLC-1-TX
The AJA FiDO-1T-LC is a compact 3G-SDI to LC fiber optic transmitter designed for long-distance transmission of HD video signals over single-mode fiber. It delivers reliable, low-latency performance ideal for professional video workflows.
- Converts 3G-SDI to LC fiber
- Supports HD and SD video formats
- Compact, rugged design
- Single-mode fiber transmission
- LC optical connector
- Real-time, low-latency conversion
- Supports embedded SDI audio
- Ideal for long-distance signal transport
- Locking power connector
- Plug-and-play operation
- Video Input: 1x 3G-SDI BNC, SMPTE 259/292/424
- Video Output: 1x LC optical fiber
- Supported Formats: Up to 1080p 60 (3G-SDI)
- Audio Support: Embedded SDI audio
- Fiber Type: Single-mode
- Wavelength: 1310 nm
- Max Cable Length: Up to 10 km (single-mode fiber)
- Power: +5-20V DC, 1.6W
- Connector Type: LC
- Dimensions: 5.8" x 1.0" x 0.8" (147mm x 25mm x 20mm)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
