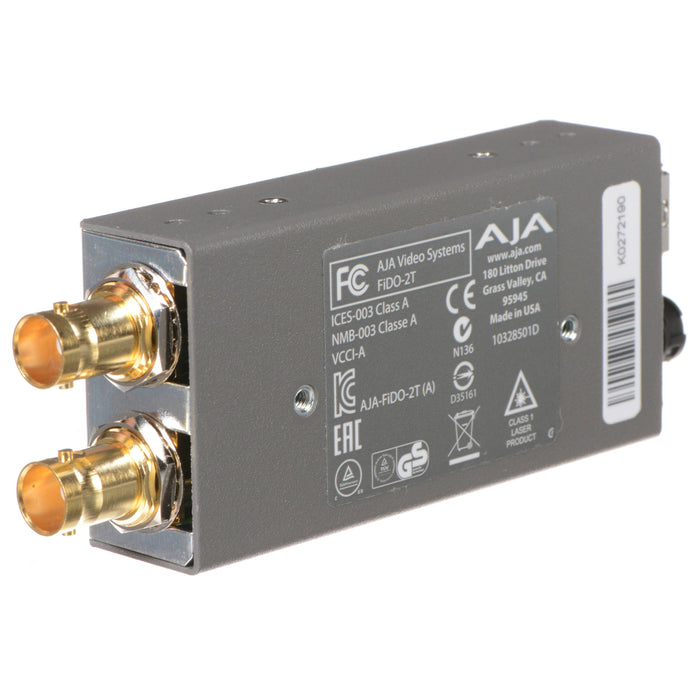

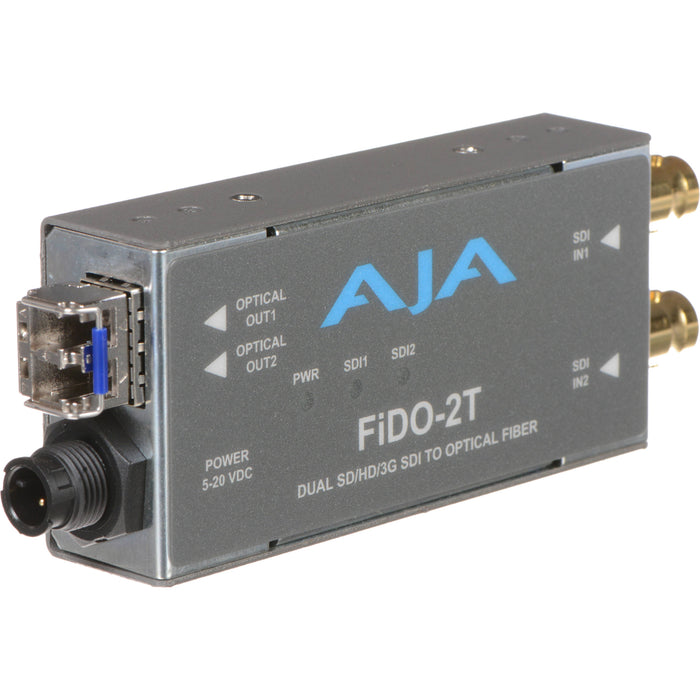

AJA FiDO Dual-Channel 3G-SDI to LC Fiber Mini Converter
Availability:
In stock 3-5 days
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.
MODEL: FIDO-2T
SKU: FIDO-2T
The AJA FiDO-2T is a dual-channel 3G-SDI to fiber optic transmitter designed for transmitting HD video signals over long distances. Featuring two independent 3G-SDI inputs and two LC fiber outputs, it offers a compact and rugged solution ideal for professional broadcast, live production, and AV applications.
- Dual-channel 3G-SDI to fiber optic conversion
- Two independent 3G-SDI BNC inputs
- Two LC fiber optic outputs (single-mode)
- Supports SDI formats: 3G/HD/SD
- Compact and durable design for professional use
- Reclocked SDI inputs for signal stability
- Plug-and-play operation
- Compatible with standard single-mode fiber systems
- Locking 2-pin power connector
- Low power consumption
- Ideal for long-distance HD video transmission in broadcast and AV environments
- Video Formats: 3G/HD/SD-SDI
- Inputs: 2x 3G-SDI BNC (independent channels)
- Outputs: 2x LC fiber optic (single-mode)
- Reclocking: Yes, on SDI inputs
- Max Resolution: Up to 1080p 60
- Fiber Type: Single-mode
- Wavelength: 1310 nm
- Operating Distance: Up to 10 km (6.2 miles) with standard single-mode fiber
- Power: +5 to +20 VDC, 3 Watts max
- Power Connector: Locking 2-pin
- Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
- Weight: 0.4 lb (0.18 kg)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
