Dual-channel fiber optic to 3G-SDI receiver with LC connectors for reliable HD video signal conversion over long distances.

AJA FiDO Dual-Channel LC Fiber to 3G-SDI Mini Converter

by AJA
Availability:
In stock 3-5 days
$815.00 - $815.00
$815.00
$815.00 - $815.00
$815.00

MODEL: FIDO-2R

SKU: FIDO-2R


  • Overview
  • Features
  • Specifications

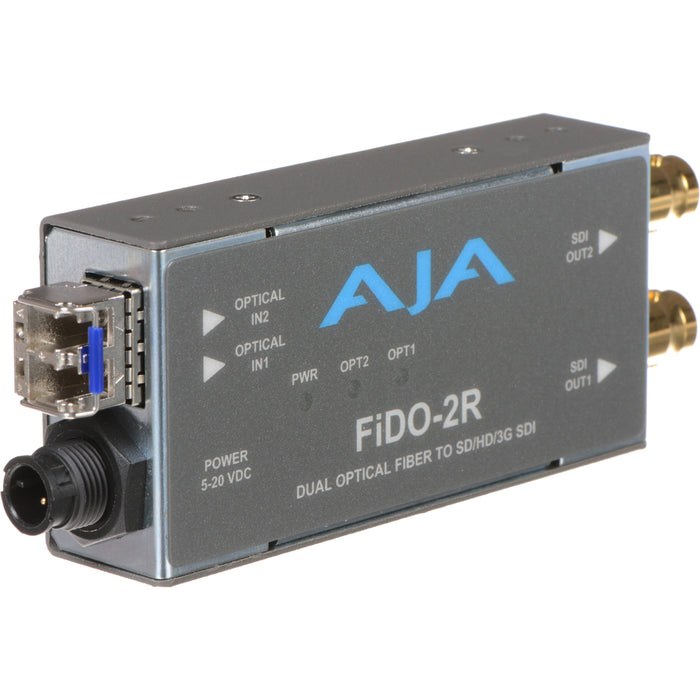

The AJA FiDO-2R is a dual-channel fiber optic to 3G-SDI receiver designed for high-quality HD video signal conversion over long distances. Featuring two independent LC fiber inputs and two 3G-SDI outputs, it offers a compact, durable solution ideal for professional broadcast, live production, and AV installations.

  • Dual-channel fiber optic to 3G-SDI conversion
  • Two independent LC fiber optic inputs (single-mode)
  • Two 3G-SDI BNC outputs
  • Supports SDI formats: 3G/HD/SD
  • Compact and rugged design for field or studio use
  • Reclocked SDI outputs for stable signal transmission
  • Plug-and-play operation
  • Compatible with standard single-mode fiber systems
  • Locking 2-pin power connector
  • Low power consumption
  • Ideal for professional broadcast and AV environments
  • Video Formats: 3G/HD/SD-SDI
  • Inputs: 2x LC fiber optic (single-mode, independent channels)
  • Outputs: 2x 3G-SDI BNC
  • Reclocking: Yes, on SDI outputs
  • Max Resolution: Up to 1080p 60
  • Fiber Type: Single-mode
  • Wavelength: 1310 nm
  • Operating Distance: Up to 10 km (6.2 miles) with standard single-mode fiber
  • Power: +5 to +20 VDC, 3 Watts max
  • Power Connector: Locking 2-pin
  • Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
  • Weight: 0.4 lb (0.18 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
