Four-channel fiber optic to 3G-SDI receiver with LC connectors for high-density HD video signal conversion.

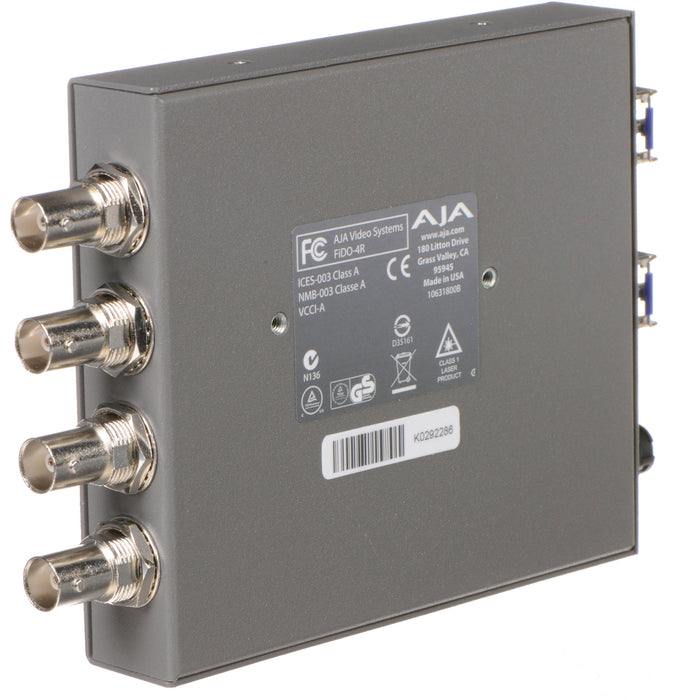

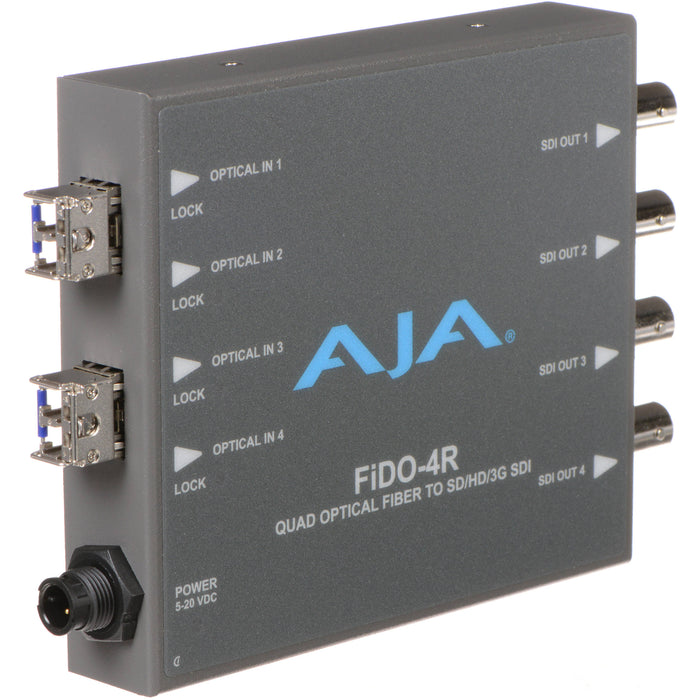

AJA FiDO Quad-Channel LC Fiber to 3G-SDI Mini Converter

by AJA
Availability:
In stock 3-5 days
$2,743.00 - $2,743.00
$2,743.00
$2,743.00 - $2,743.00
$2,743.00

MODEL: FIDO-4R

SKU:  FIDO-4R


  • Overview
  • Features
  • Specifications

The AJA FiDO-4R is a four-channel fiber optic to 3G-SDI receiver designed for high-density HD video workflows. It features four independent LC fiber inputs and four 3G-SDI outputs, enabling reliable long-distance video signal reception in a compact and rugged form factor, ideal for professional broadcast and AV environments.

  • 4-channel fiber optic to 3G-SDI conversion
  • Four independent LC fiber optic inputs (single-mode)
  • Four 3G-SDI BNC outputs
  • Supports SDI formats: 3G/HD/SD
  • Compact and rugged design for professional use
  • Reclocked SDI outputs for signal integrity
  • Plug-and-play operation
  • Compatible with standard single-mode fiber systems
  • Locking 2-pin power connector
  • Low power consumption
  • Ideal for high-density video reception in broadcast and AV setup
  • Video Formats: 3G/HD/SD-SDI
  • Inputs: 4x LC fiber optic (single-mode, independent channels)
  • Outputs: 4x 3G-SDI BNC
  • Reclocking: Yes, on all SDI outputs
  • Max Resolution: Up to 1080p 60
  • Fiber Type: Single-mode
  • Wavelength: 1310 nm
  • Operating Distance: Up to 10 km (6.2 miles) with standard single-mode fiber
  • Power: +5 to +20 VDC, 5 Watts max
  • Power Connector: Locking 2-pin
  • Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
  • Weight: 0.5 lb (0.23 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
