Single-channel fiber optic to 3G-SDI receiver with ST connector for long-distance HD video signal conversion.

AJA FiDO Single-Channel ST Fiber to 3G-SDI Mini Converter

by AJA
Availability:
In stock 3-5 days
$825.00 - $825.00
$825.00
$825.00 - $825.00
$825.00

MODEL: FIDO-R-ST

SKU:  FIDO-R-ST


  • Overview
  • Features
  • Specifications

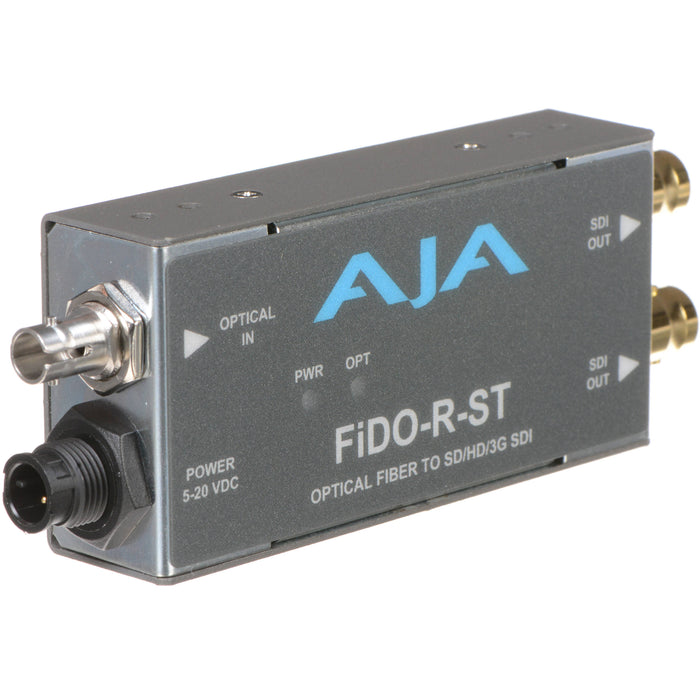

The AJA FiDO-R-ST is a single-channel fiber optic to 3G-SDI receiver featuring an ST connector, designed for reliable HD video transmission over long distances. Its compact and rugged design makes it ideal for professional broadcast, live production, and AV applications where space efficiency and dependable signal conversion are essential.

  • Single-channel fiber optic to 3G-SDI conversion
  • 1x ST fiber optic input (single-mode)
  • 1x 3G-SDI BNC output
  • Supports SDI formats: 3G/HD/SD
  • Reclocked SDI output for signal integrity
  • Compact and rugged design for professional use
  • Plug-and-play operation
  • Compatible with standard single-mode fiber systems
  • Locking 2-pin power connector
  • Low power consumption
  • Ideal for long-distance HD video reception in broadcast and AV environments
  • Video Formats: 3G/HD/SD-SDI
  • Input: 1x ST fiber optic (single-mode)
  • Output: 1x 3G-SDI BNC
  • Reclocking: Yes, on SDI output
  • Max Resolution: Up to 1080p 60
  • Fiber Type: Single-mode
  • Wavelength: 1310 nm
  • Operating Distance: Up to 10 km (6.2 miles) with standard single-mode fiber
  • Power: +5 to +20 VDC, 2.5 Watts max
  • Power Connector: Locking 2-pin
  • Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
  • Weight: 0.4 lb (0.18 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
