AJA FS-Mini Frame Synchronizer
Availability:
In stock 3-5 days
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.
MODEL: FS-MINI
SKU: FS-MINI

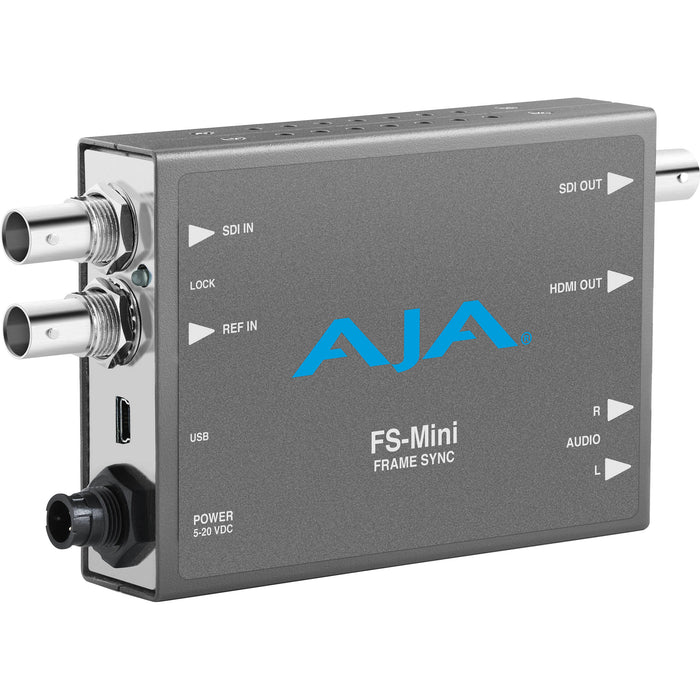

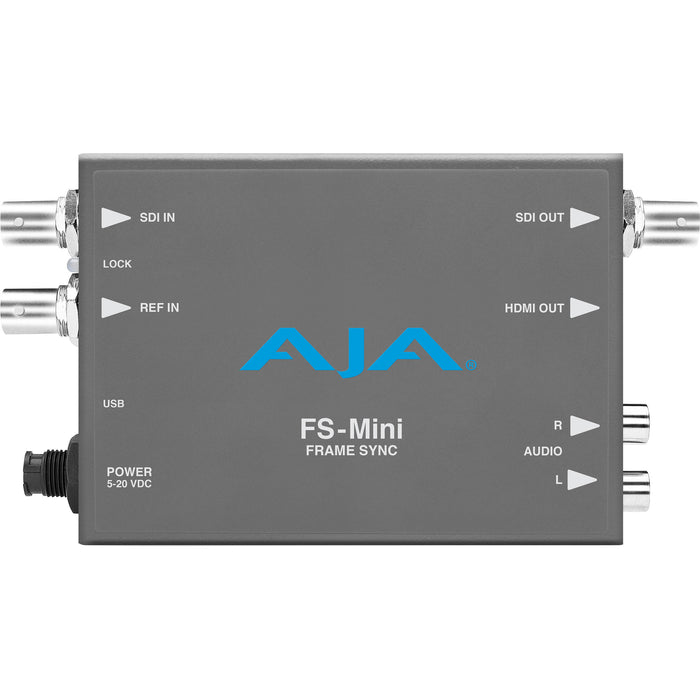

The AJA FS-Mini is a compact, cost-effective frame synchronizer designed for professional video workflows. It supports HD and SD formats with SDI input and output, offering reliable synchronization and timing correction in a portable form factor ideal for mobile production, broadcast, and live events.
- Compact and portable frame synchronizer
- Supports HD and SD video formats
- SDI input and output
- Full frame synchronization
- Low latency processing
- LED indicators for power and signal status
- Lockable power connector
- Simple integration into existing workflows
- Ideal for mobile, broadcast, and live production
- Reliable and cost-effective solution
- Type: Compact frame synchronizer
- Video Formats: HD and SD (up to 1080p)
- Video Input: 1x 3G/HD/SD-SDI (BNC)
- Video Output: 1x 3G/HD/SD-SDI (BNC)
- Input Formats Supported: 525i, 625i, 720p, 1080i, 1080p
- Frame Synchronization: Full frame sync for supported formats
- Audio Support: 16-channel embedded SDI audio
- Status Indicators: LED for signal presence and power
- Power Input: 5-20V DC, lockable connector
- Power Consumption: ~3.5 W
- Dimensions: 5.8" x 3.1" x 1" (147mm x 79mm x 25mm)
- Weight: Approx. 0.5 lbs (0.23 kg)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 10–90% non-condensing
- Mounting: Optional bracket for rack or surface mounting
