AJA KUMO 1616 compact 16x16 3G-SDI router with full-size BNC connectors, front-panel buttons, and LCD screen in a 1RU rack-mounted unit.

AJA KUMO 1616 Compact 3G-SDI Router (1 RU)

by AJA
Availability:
In stock 3-5 days
$2,529.00 - $2,529.00
$2,529.00
$2,529.00 - $2,529.00
$2,529.00

MODEL: KUMO 1616

SKU: KUMO-1616
  • Overview
  • Features
  • Specifications

The AJA KUMO 1616 is a compact 16x16 3G-SDI router designed for professional video applications. It supports SD, HD, and 3G-SDI formats with full-size BNC connectors, offering flexible routing, intuitive front-panel control, and remote operation via Ethernet—all within a space-saving 1RU rackmount design.

  • 16x16 3G-SDI routing matrix
  • Supports SD, HD, and 3G-SDI video formats
  • Full-size BNC connectors for all inputs and outputs
  • Compact 1RU rack-mounted design

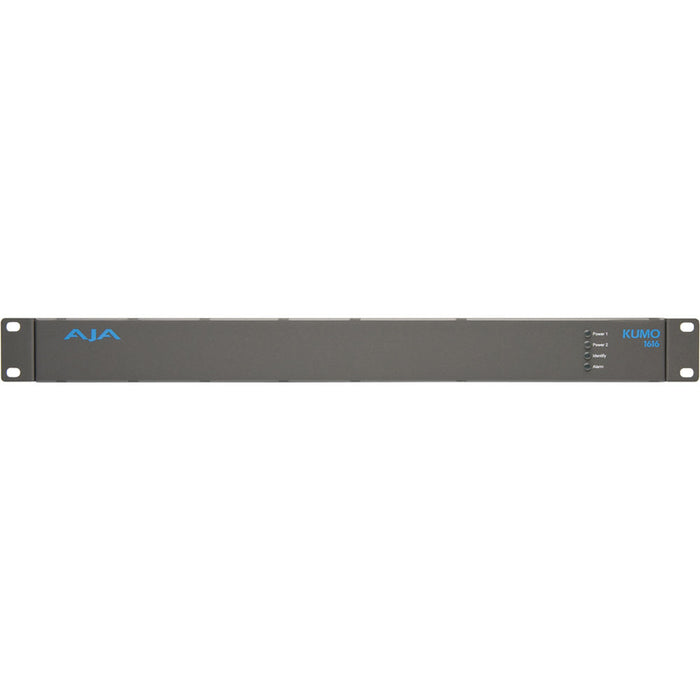

  • Front panel control with buttons and LCD display
  • Remote control via Ethernet
  • Compatible with AJA KUMO CP and CP2 control panels
  • Non-blocking signal routing
  • Low power consumption and quiet operation

  • Ideal for broadcast, production, and post environments
  • Type: 16x16 3G-SDI video router
  • Video Formats: SD, HD, and 3G-SDI (up to 1080p 60)

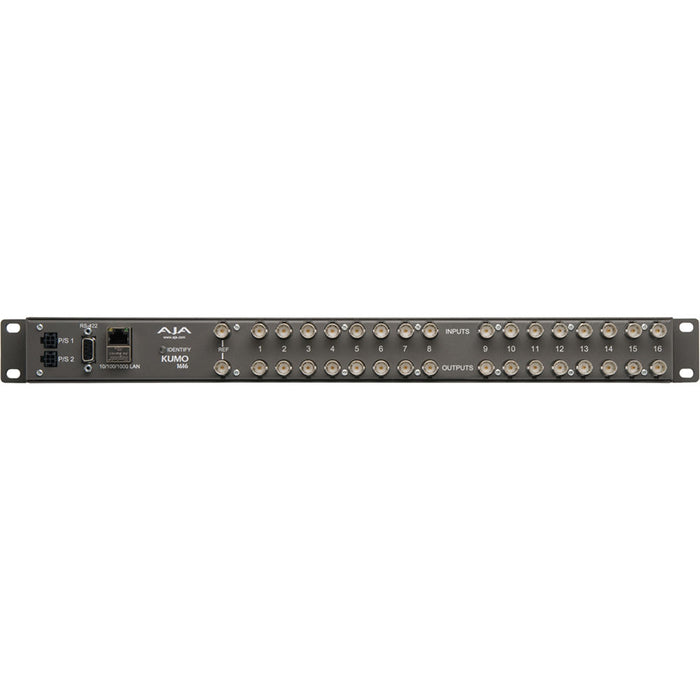

  • Inputs: 16x 3G-SDI (BNC)
  • Outputs: 16x 3G-SDI (BNC)
  • Connector Type: Full-size BNC for all I/O
  • Signal Type: SMPTE 259/292/424 compliant
  • Routing Matrix: Non-blocking 16x16
  • Control Interfaces:
  • Front panel with buttons and LCD
  • Ethernet for remote or web-based control
  • Compatible with AJA KUMO CP and CP2 panels
  • Redundancy: Optional dual redundant power supplies
  • Power Supply: 100–240V AC, 50/60 Hz autosensing
  • Power Consumption: Approx. 25W
  • Form Factor: 1RU rackmount
  • Dimensions: 19" W x 1.75" H x 1.73" D (48.3 cm x 4.4 cm x 4.4 cm)
  • Weight: Approx. 4.5 lbs (2 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 10–90% non-condensing
