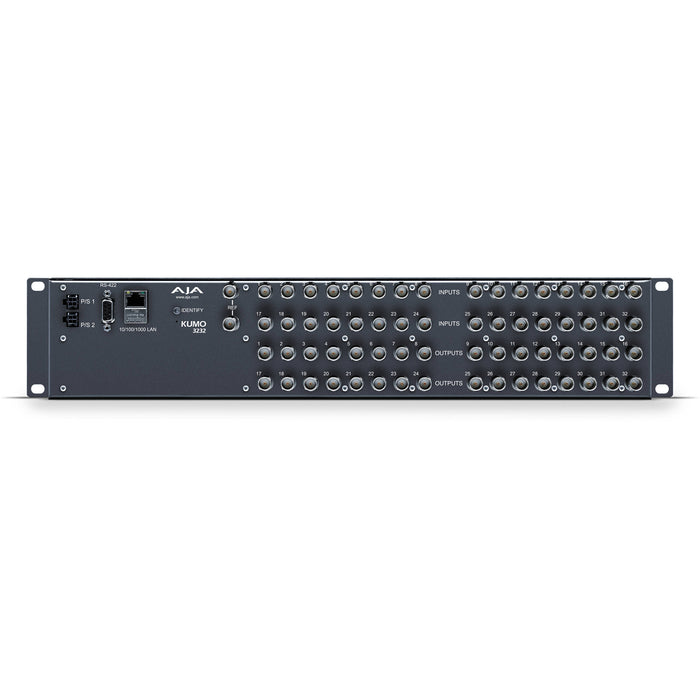

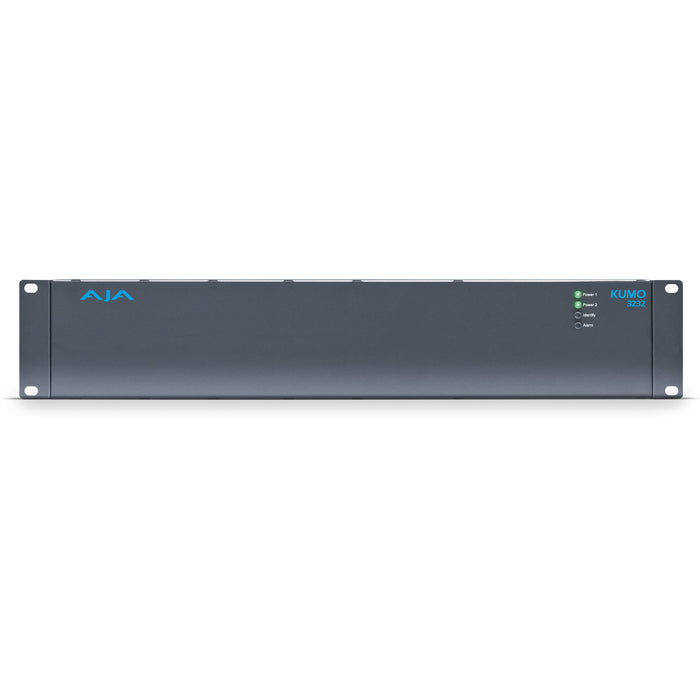

AJA KUMO 3232 compact 32x32 3G-SDI router with full-size BNC connectors, front-panel buttons, and LCD display in a 2RU rack-mounted unit.

AJA KUMO 3232 Compact 3G-SDI Router (2 RU)

by AJA
Availability:
In stock 3-5 days
$4,399.00 - $4,399.00
$4,399.00
$4,399.00 - $4,399.00
$4,399.00

MODEL: KUMO 3232

SKU: KUMO-3232
  • Overview
  • Features
  • Specifications

The AJA KUMO 3232 is a compact 32x32 3G-SDI router designed for professional broadcast and production environments. It supports SD, HD, and 3G-SDI formats with full-size BNC connectors and offers intuitive control via front panel, Ethernet, or optional remote panels—all in a space-efficient 2RU rackmount design.

  • 32x32 3G-SDI routing matrix
  • Supports SD, HD, and 3G-SDI video formats
  • Full-size BNC connectors for all inputs and outputs
  • Compact 2RU rack-mounted form factor
  • Front panel control with illuminated buttons and LCD display
  • Remote control via Ethernet
  • Compatible with AJA KUMO CP and CP2 panels
  • Redundant power supply support
  • Quiet, energy-efficient operation
  • Ideal for broadcast, OB trucks, and post-production workflows
  • Type: 32x32 3G-SDI video router
  • Video Formats: SD, HD, and 3G-SDI (up to 1080p 60)
  • Inputs: 32x 3G-SDI (BNC)
  • Outputs: 32x 3G-SDI (BNC)
  • Connector Type: Full-size BNC for all I/O
  • Signal Type: SMPTE 259/292/424 compliant
  • Routing Matrix: Non-blocking 32x32
  • Control Interfaces:
  • Front panel with buttons and LCD
  • Ethernet for web-based or network control
  • Compatible with AJA KUMO CP and CP2 panels
  • Redundancy: Optional dual redundant power supplies
  • Power Supply: 100–240V AC, 50/60 Hz autosensing
  • Power Consumption: Approx. 30W
  • Form Factor: 2RU rackmount
  • Dimensions: 19" W x 3.5" H x 1.73" D (48.3 cm x 8.9 cm x 4.4 cm)
  • Weight: Approx. 6 lbs (2.7 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 10–90% non-condensing
