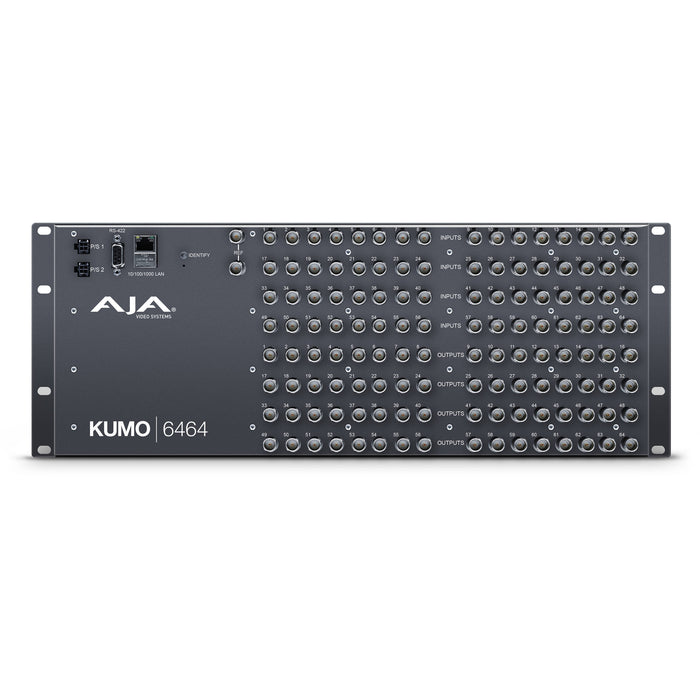

AJA KUMO 6464 compact 64x64 3G-SDI router with full-size BNC connectors, front-panel control buttons, and LCD screen in a 4RU rack-mounted unit.

AJA KUMO 6464 Compact 64x64 3G-SDI Router

by AJA
Availability:
In stock 3-5 days
$14,516.00 - $14,516.00
$14,516.00
$14,516.00 - $14,516.00
$14,516.00

MODEL: KUMO 6464

SKU: KUMO-6464
  • Overview
  • Features
  • Specifications

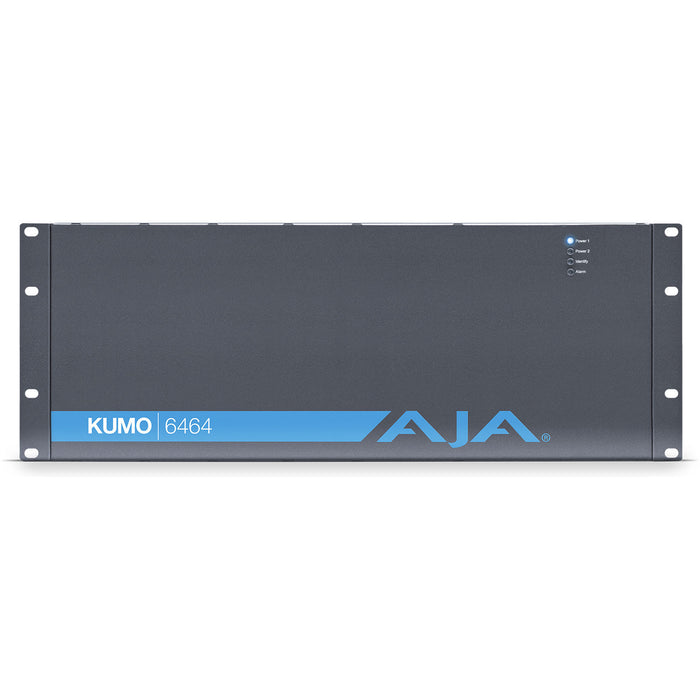

The AJA KUMO 6464 is a high-density 64x64 3G-SDI router designed for large-scale video signal routing in broadcast and production environments. Housed in a compact 4RU chassis, it offers reliable performance, full-size BNC connections, and flexible control via front panel, Ethernet, or optional remote panels.

  • 64x64 3G-SDI routing matrix
  • Supports SD, HD, and 3G-SDI video formats
  • Full-size BNC connectors for all inputs and outputs
  • Compact 4RU rack-mounted design
  • Redundant power supplies for reliability
  • Front panel control with LCD display
  • Remote control via Ethernet
  • Compatible with AJA KUMO Control Panels
  • Low power consumption and quiet operation
  • Ideal for large-scale broadcast and post-production workflows
  • Type: 64x64 3G-SDI video router
  • Video Formats: SD, HD, and 3G-SDI (up to 1080p 60)
  • Inputs: 64x 3G-SDI (BNC)
  • Outputs: 64x 3G-SDI (BNC)
  • Connector Type: Full-size BNC for all I/O
  • Signal Type: SMPTE 259/292/424
  • Routing Matrix: Non-blocking 64x64
  • Control Interfaces:
  • Front panel with buttons and LCD
  • Ethernet for web-based and network control
  • Compatible with AJA KUMO CP and CP2 panels
  • Redundancy: Dual redundant power supplies
  • Power Supply: 100-240V AC, 50/60 Hz autosensing
  • Power Consumption: Approx. 60W
  • Form Factor: 4RU rackmount
  • Dimensions: 19" W x 7" H x 1.73" D (48.3 cm x 17.8 cm x 4.4 cm)
  • Weight: Approx. 12 lbs (5.4 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 10–90% non-condensing
