AJA V2Analog Mini-Converter €â‚¬Ã…€œ SDI to analog video converter with 10-bit processing and simultaneous component, composite, and YC outputs.

AJA V2Analog HD/SD-SDI to Analog Mini-Converter

by AJA
Availability:
In stock 3-5 days
$651.00 - $651.00
$651.00
$651.00 - $651.00
$651.00

MODEL: V2ANALOG

SKU: V2ANALOG
  • Overview
  • Features
  • Specifications

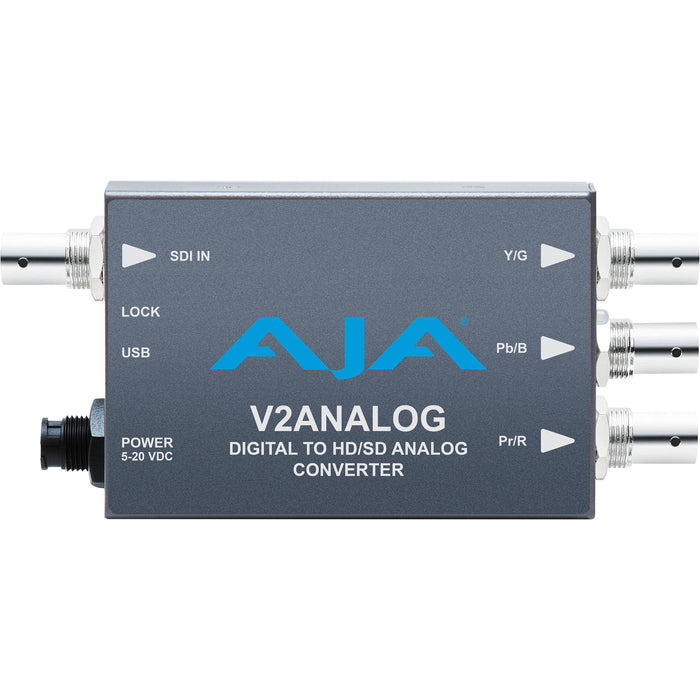

The AJA V2Analog is a compact mini-converter that converts SDI digital video to high-quality analog outputs, including component, composite, and YC. It features 10-bit processing and supports NTSC and PAL formats, making it ideal for integrating digital sources into analog workflows.

  • Converts SDI to analog video output
  • Supports component, composite, and YC analog formats
  • 10-bit high-quality D/A video conversion
  • Simultaneous output of all analog formats
  • Supports NTSC and PAL video standards
  • Embedded SDI audio pass-through (no analog audio conversion)
  • Compact and durable design
  • Locking power connector
  • Universal power supply included
  • Ideal for connecting digital sources to analog systems
  • Video Input: 1x SDI (BNC connector)
  • Video Formats Supported: NTSC, PAL (SD-SDI)
  • Video Outputs:
  • 1x Component (Y, Pb, Pr)
  • 1x Composite
  • 1x YC (S-Video)
  • Conversion: 10-bit D/A video conversion
  • Audio: SDI audio pass-through (no analog audio output)
  • Simultaneous Output: Component, composite, and YC all active at once
  • Power: 5V DC, locking power connector (universal power supply included)
  • Dimensions: 5.8" x 3.1" x 1.0" (147 mm x 79 mm x 25 mm)
  • Weight: 0.5 lb (0.23 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Humidity: 10% to 90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
