AJA V2Digital Mini-Converter – Analog component or composite video to SDI converter with audio embedding for professional video workflows.

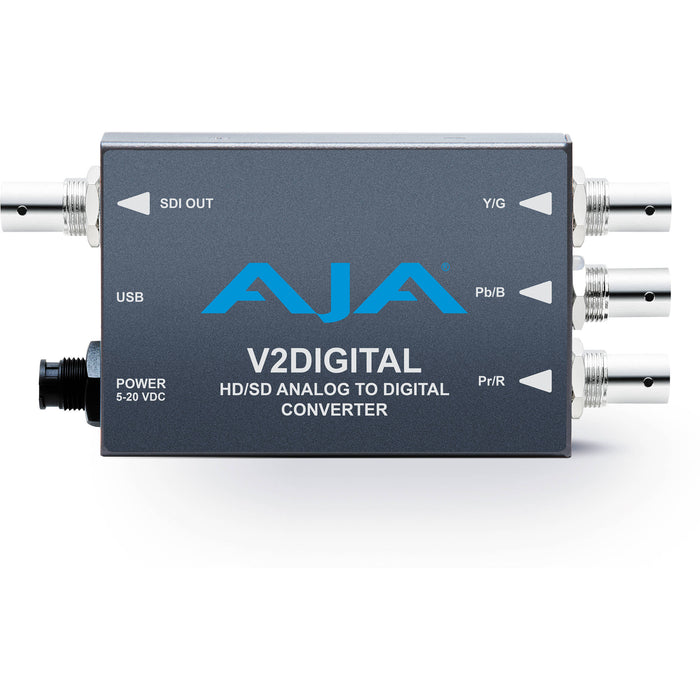

AJA V2Digital Analog to HD/SD-SDI Mini-Converter

by AJA
Availability:
In stock 3-5 days
$642.00 - $642.00
$642.00
$642.00 - $642.00
$642.00

MODEL: V2DIGITAL

SKU: V2DIGITAL


  • Overview
  • Features
  • Specifications

The AJA V2Digital is a compact mini-converter that converts analog component, composite, or YC video to SDI, supporting both NTSC and PAL formats. It also embeds analog audio into the SDI output, making it ideal for integrating legacy analog sources into digital workflows.

  • Converts analog video (component, composite, or YC) to SDI
  • Supports NTSC and PAL video formats
  • 10-bit high-quality A/D video conversion
  • Dual SDI outputs for signal distribution
  • Embeds 2-channel analog audio into SDI
  • Adjustable video gain, contrast, hue, and saturation
  • Compact and portable design
  • Locking power connector
  • Universal power supply included
  • Ideal for integrating analog sources into digital workflows
  • Video Input: 1x analog video (component, composite, or YC)
  • Video Formats Supported: NTSC, PAL
  • Video Output: 2x SDI (BNC connectors)
  • Conversion: 10-bit A/D video conversion
  • Audio Input: 2-channel analog audio (RCA or 3.5mm TRS, depending on model)
  • Audio Output: Embedded in SDI output (2 channels)
  • User Controls: Adjustable gain, contrast, hue, and saturation
  • Power: 5V DC, locking power connector (universal power supply included)
  • Dimensions: 5.8" x 3.1" x 1.0" (147 mm x 79 mm x 25 mm)
  • Weight: 0.5 lb (0.23 kg)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Humidity: 10% to 90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
