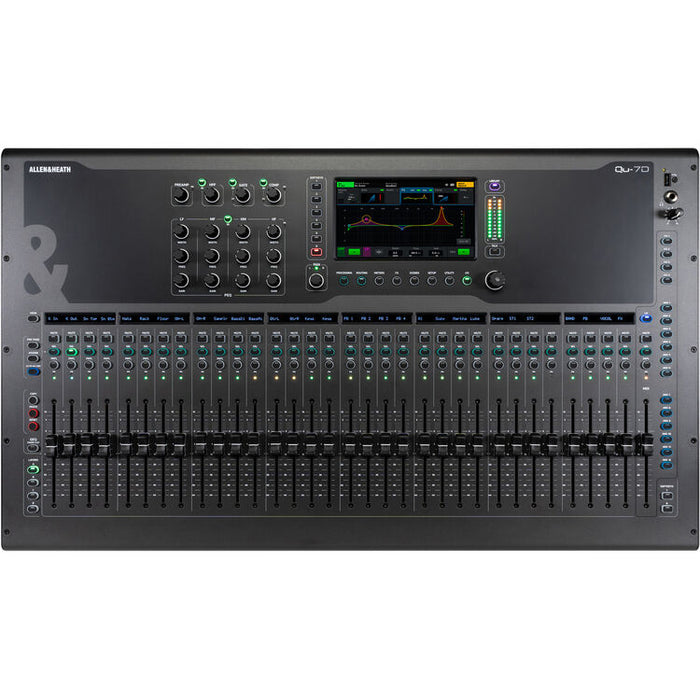

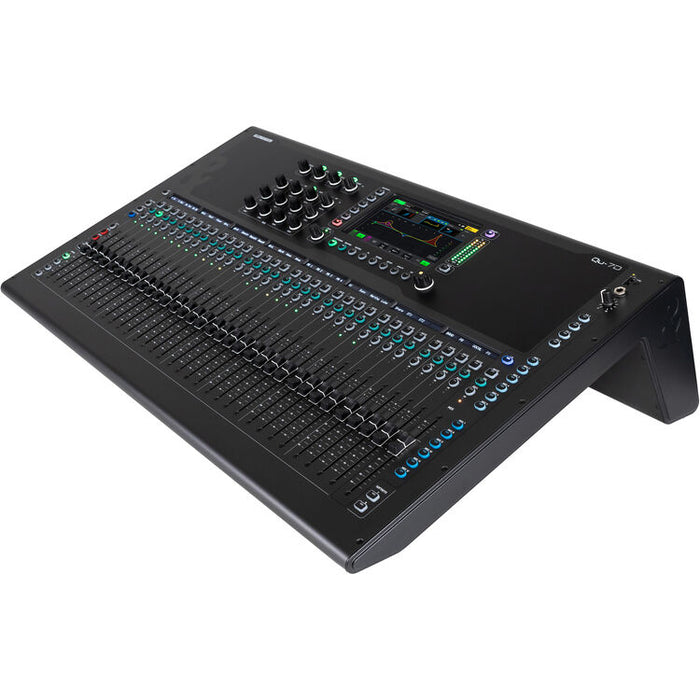

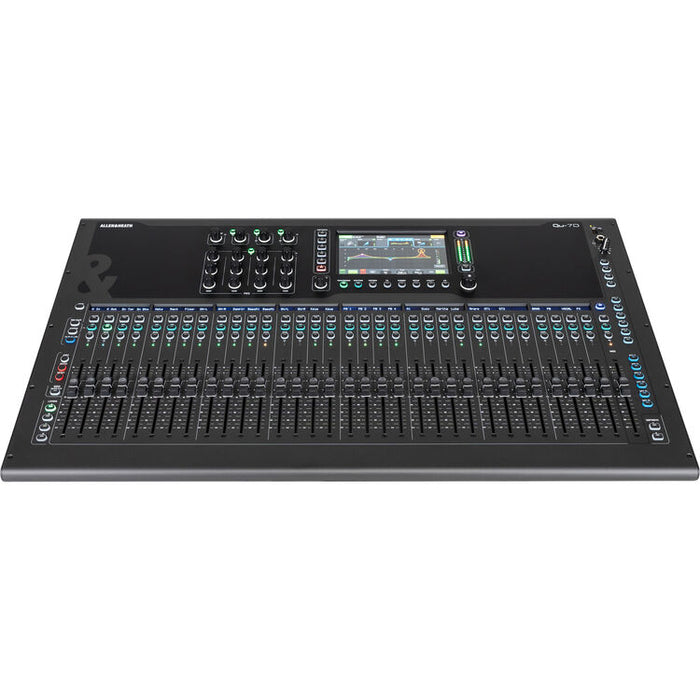

Allen & Heath Qu-7D 38-input digital mixer with 33 motorized faders, 7-inch touchscreen and Dante networking

Allen & Heath Qu-7D 36-Channel / 12-Bus Digital Mixer with 33 Motorized Faders

by Allen & Heath
Availability:
In stock 3-5 days
Do you have questions about pricing?
📞 416-690-1690
✉️ info@videolink.ca
Trusted by broadcasters, venues, and production teams across Canada.

SKU: QU-7D

  • Overview
  • Features
  • Specifications

The Allen & Heath Qu-7D is a professional 96kHz digital mixer designed for live sound, houses of worship, broadcast, corporate events, theater and installed audio.

Featuring 38 inputs to mix, 12 mix buses, 33 fully motorized faders and a 7-inch touchscreen, the Qu-7D provides an extensive hands-on mixing surface with fast access to channels, mixes and processing.

Powered by Allen & Heath's XCVI FPGA processing engine, the Qu-7D delivers high-quality audio with comprehensive processing, six Multi-FX engines, Gain Assistant, Feedback Assistant and a 32-channel automatic microphone mixer.

Built-in Dante networking provides 16×16 audio connectivity at 48kHz or 96kHz, while the 32×32 USB-C audio interface, multichannel SD recording and 128×128 SLink connection provide extensive recording and system expansion capabilities.

With four customizable fader layers, flexible routing, remote-control capabilities and extensive I/O, the Qu-7D is an excellent choice for professional productions requiring powerful processing, Dante networking and a large hands-on mixing surface.

The Key Features of the Allen & Heath Qu-7D:

  • 38 inputs to mix: 32 mono/linkable and 3 stereo channels
  • 12 mix buses: 6 mono/linkable Aux/Group and 6 stereo Aux/Group
  • 4 mono/linkable Matrix mixes
  • 4 dedicated FX sends
  • Stereo Main LR output
  • 33 fully motorized 100mm faders across 4 customizable layers
  • 96kHz XCVI FPGA processing engine
  • 7-inch capacitive touchscreen with 800 × 480 resolution
  • 32 XLR/Jack Combi microphone/line inputs
  • 20 XLR outputs plus 2 TRS outputs
  • 16 × 16 Dante audio interface at 48kHz or 96kHz
  • Dedicated locking EtherCON Dante connection
  • 6 Multi-FX engines with dedicated stereo returns
  • DEEP Processing ready
  • Gain Assistant for fast and consistent input gain setup
  • Feedback Assistant with 8 simultaneous detectors
  • 32-channel zero-latency automatic microphone mixer
  • 31/61-band Real Time Analyser
  • 32 × 32 USB-C multichannel audio interface
  • Multichannel SD card recording and playback
  • 128 × 128 SLink connection for Everything I/O expansion
  • 4 freely assignable channel-strip layers
  • 8 assignable SoftKeys
  • 300 Scene memories per Show
  • Compatible with Allen & Heath ME personal monitoring systems
  • Remote control via Windows, macOS, iOS and Android applications
  • Configurable single or dual footswitch connection
  • 12V lamp socket

The Detailed Specifications for the Allen & Heath Qu-7D:

  • Model: Allen & Heath Qu-7D
  • SKU: QU-7D
  • Inputs to Mix: 38
  • Mono Inputs: 32 mono/linkable
  • Stereo Inputs: 3 stereo
  • Mic/Line Inputs: 32 balanced XLR/Jack Combi sockets
  • Stereo Line Inputs: 2 stereo inputs, each with 2 × TRS connections
  • Talkback Input: 1 XLR
  • Mixes: 12 total
  • Mono/Linkable Aux/Group Mixes: 6
  • Stereo Aux/Group Mixes: 6
  • FX Sends: 4
  • Matrix Mixes: 4 mono/linkable
  • Main Output: Stereo Main LR

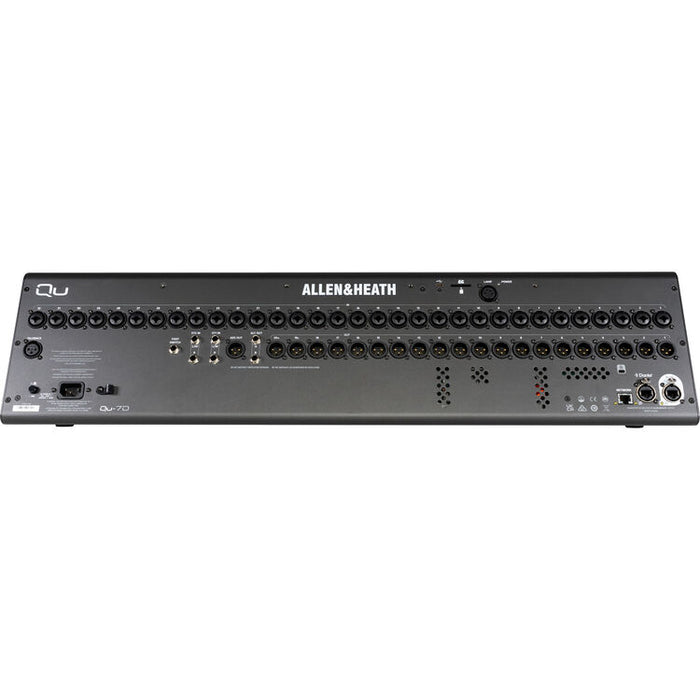

  • XLR Outputs: 20 balanced XLR
  • TRS Outputs: 2 balanced 1/4-inch TRS
  • AES3 Output: 1 stereo digital output
  • Headphone Output: Stereo
  • Faders: 33 × 100mm motorized faders
  • Fader Layers: 4 customizable layers
  • Touchscreen: 7-inch capacitive touchscreen
  • Touchscreen Resolution: 800 × 480
  • SoftKeys: 8 assignable
  • Processing: XCVI FPGA processing engine
  • Sampling Rate: 96kHz
  • Internal Processing: Variable bit depth up to 96-bit
  • Latency: Less than 0.7ms
  • Mic/Line Preamp Gain: 0dB to +60dB in 1dB steps
  • Phantom Power: +48V
  • Multi-FX Engines: 6 with dedicated stereo returns
  • Automatic Mic Mixer: 32-channel zero-latency AMM
  • Real Time Analyser: 31/61-band
  • Feedback Assistant: 8 simultaneous detectors
  • USB-A: Stereo audio recording/playback and data transfer
  • USB-C Audio: 32 × 32 multichannel recording/playback at 48/96kHz
  • SD Card Recording: 16 channels at 96kHz or 32 channels at 48kHz
  • Dante: 16 × 16 channels at 48kHz or 96kHz
  • Dante Connection: Dedicated locking EtherCON port
  • SLink: 128 × 128 intelligent SLink port
  • Network: RJ45 Ethernet
  • MIDI: USB-C and TCP/IP
  • Scene Memories: 300 per Show
  • Remote Control: Windows, macOS, iOS and Android
  • DAW Control: USB or TCP/IP
  • Personal Monitoring: Compatible with Allen & Heath ME systems
  • Footswitch: Configurable single or dual 1/4-inch connection
  • Lamp Connection: 12V
  • Power Supply: IEC mains connection with worldwide PSU
  • Operating Temperature: 0°C to 40°C
