CRV44-12G-R0-11 AJA video router, offering 12G-SDI support for high-quality video switching and routing in broadcast and production environments.

CRV44-12G-R0-11 8-Lane 12G-SDI PCIe 3.0 x4 Ch I/O Card - Short Bracket - Fanless Passive Cooling - HDBNC with Cables

by AJA
Availability:
In stock 3-5 days
$4,069.00 - $4,069.00
$4,069.00
$4,069.00 - $4,069.00
$4,069.00

MODEL: CRV44-12G-R0-11

SKU: CRVV-12G-R0-11
  • Overview
  • Features
  • Specifications

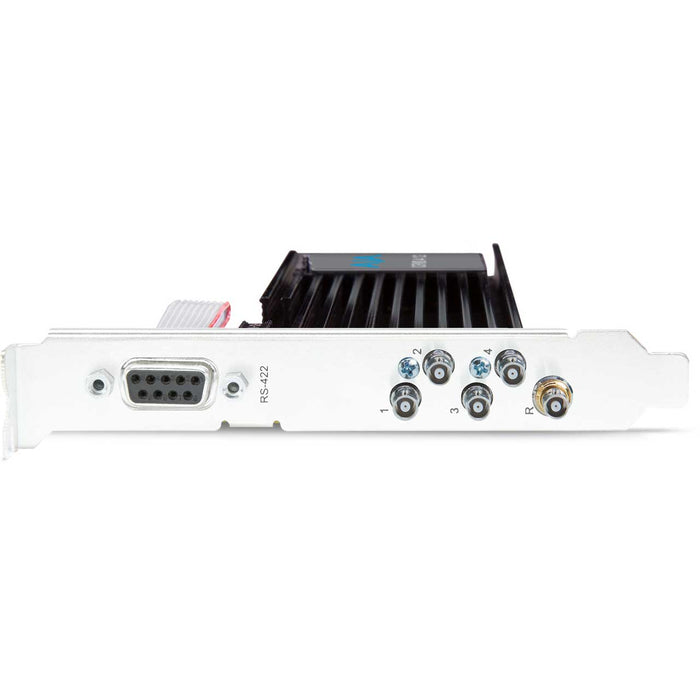

The AJA CRV44-12G-R0-11 is a high-performance 12G-SDI video I/O card with four bidirectional 12G-SDI connections. It supports 8K, 4K, HD, and SD formats, with high frame rates and deep color support. Ideal for demanding broadcast and production workflows, it features passive cooling and is compatible with AJA’s SDK.

  • Four bidirectional 12G-SDI HD-BNC connections
  • Supports 8K, 4K, HD, and SD formats
  • High frame rate (HFR) support up to 8K at 50/60p
  • Deep color support (12-bit RGB 4:4:4, 10-bit YCbCr 4:2:2)
  • Passive cooling for compact systems
  • Short bracket included for space-saving installation
  • Compatible with AJA SDK for video application integration
  • Interface: PCIe 3.0 x8
  • Form Factor: Low-profile (short bracket)
  • Cooling: Passive (fanless)
  • Connectors: 4x bidirectional 12G-SDI HD-BNC
  • Reference Input: Mini-BNC
  • RS-422: No
  • Resolution Support:
  • 8K (8192 x 4320) up to 60p
  • UltraHD2 (7680 x 4320) up to 60p
  • 4K (4096 x 2160) up to 60p
  • UltraHD (3840 x 2160) up to 60p
  • 2K (2048 x 1080) up to 60p
  • HD (1920 x 1080) up to 60p
  • SD (720 x 576) up to 60i
  • Color Depth: Up to 12-bit RGB 4:4:4, 10-bit YCbCr 4:2:2
  • Frame Rates: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 fps
  • Audio: 16 channels embedded per SDI connection
  • Compatibility: AJA SDK (Windows, macOS, Linux)

  • Software Support: Adobe Premiere Pro, Apple Final Cut Pro, Avid Media Composer, Telestream Wirecast
  • Included Accessories: Short bracket, cables
  • Warranty: 3-year limited
