Science Image Flow Edge 5CH - 5-Channel 1U Rack-mount 4K Up/Down/Cross Converter
Availability:
In stock 3-5 days
Original price
$5,540.00
-
Original price
$5,540.00
Original price
$5,540.00
$5,540.00
-
$5,540.00
Current price
$5,540.00
| /

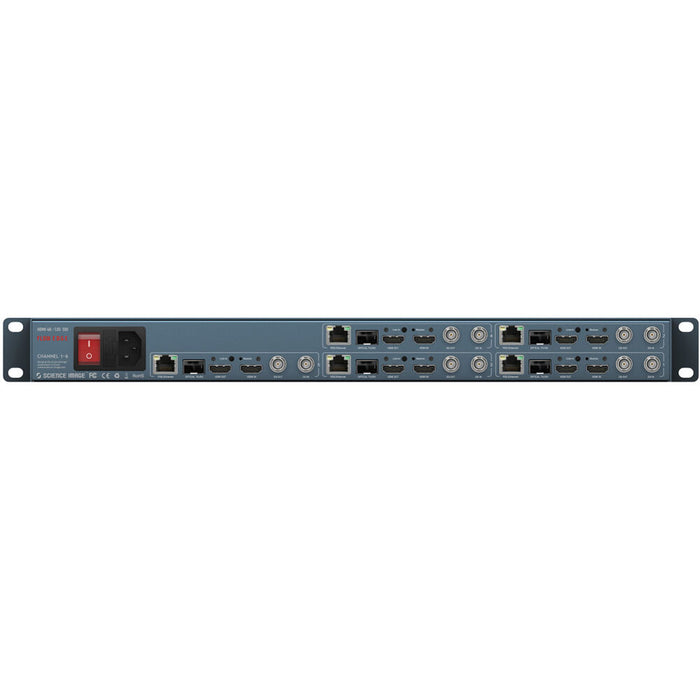

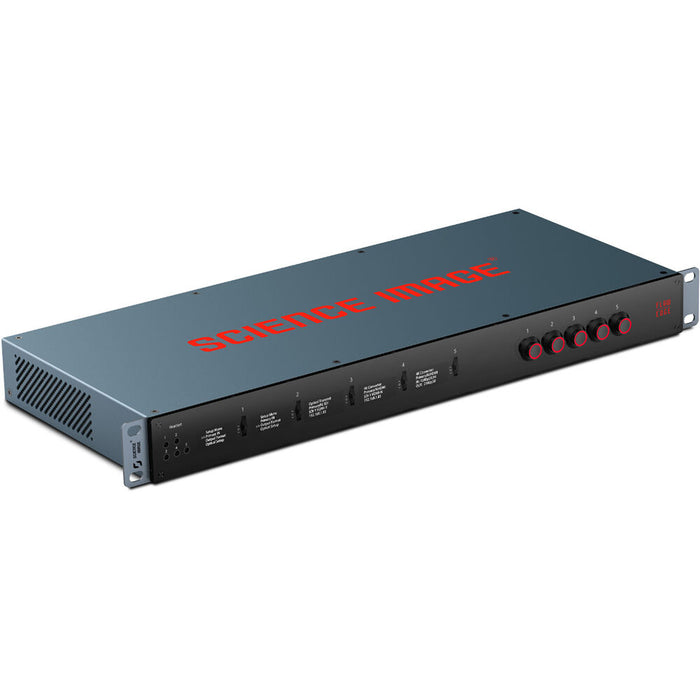

The Science Image Flow Edge 5CH is a professional-grade 5-channel 4K Up/Down/Cross Converter engineered for demanding broadcast and post-production environments. Housed in a space-efficient 1U rack-mount chassis, this powerful unit delivers seamless signal conversion between a variety of resolutions and formats, supporting up to 4K UHD. Ideal for live events, studio installations, and system integration workflows, the Flow Edge 5CH offers independent channel processing, crystal-clear output quality, and intuitive front-panel controls, making it a top choice for professionals who demand flexibility and performance.
The Key Specifications of the Science Image Flow Edge 5CH:
- Five independent 4K up/down/cross conversion channels
- Compact 1U rack-mount design for space-saving installations
- Supports resolutions up to 3840x2160 (4K UHD)
- Flexible input/output configuration including SDI and HDMI
- Low-latency processing for real-time workflows
- Robust metal chassis with front-panel control interface
- High-quality scaling, deinterlacing, and color correction
- Remote control support via IP and serial interface
- Ideal for live broadcast, studio, and AV system integration
- Redundant power supply options for mission-critical use
The Detailed Specifications for the Science Image Flow Edge 5CH:
- Channels: 5 independent video processing channels
- Video Input: 3G/6G/12G-SDI, HDMI 2.0
- Video Output: 3G/6G/12G-SDI, HDMI 2.0
- Supported Resolutions: 480i to 2160p (4K UHD)
- Conversion Types: Up, Down, and Cross Conversion
- Audio Support: Embedded audio passthrough and routing
- Control: Front-panel, IP remote control, RS-232/422
- Power: Dual redundant 100-240V AC power supplies
- Rack Size: 1U standard 19” rack-mount
- Dimensions: 19" W x 1.75" H x 12" D
- Weight: Approx. 9 lbs (4.1 kg)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
