Science Image Studio Edge 2CH - 2-Channel 1U Rack-Mount Bi-Directional 4K SDI/HDMI Full NDI Converter
Availability:
In stock 3-5 days
Original price
$2,995.00
-
Original price
$2,995.00
Original price
$2,995.00
$2,995.00
-
$2,995.00
Current price
$2,995.00
| /

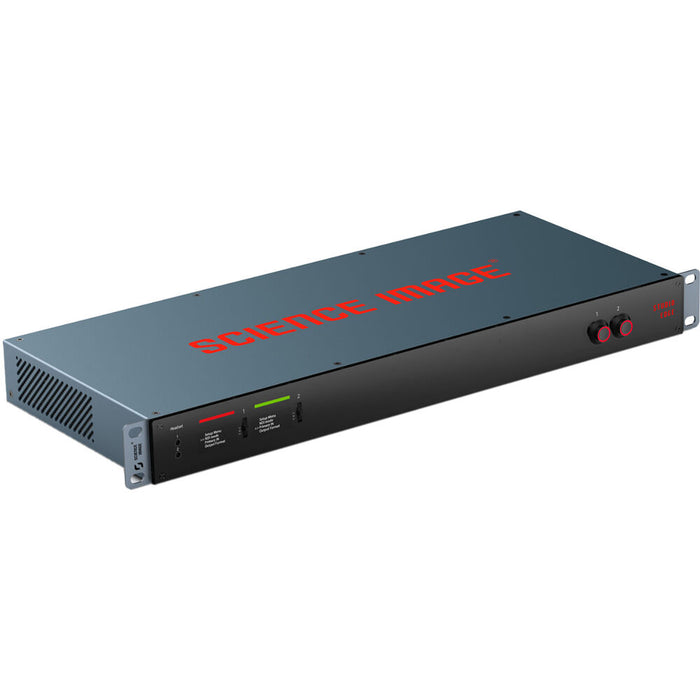

The Science Image Studio Edge 2CH is a powerful 2-channel 4K SDI/HDMI Full NDI converter designed for demanding professional broadcast and AV environments. Housed in a compact 1U rack-mountable chassis, it offers real-time, bi-directional video conversion between SDI and HDMI sources with seamless Full NDI integration. Ideal for studios, OB vans, and live event production, this converter delivers ultra-low latency and pristine image fidelity across a wide range of resolutions. Whether you're expanding your IP-based video workflow or bridging traditional and modern infrastructures, the Studio Edge 2CH offers flexibility, performance, and reliability in one sleek unit.
The Key Features of the Science Image Studio Edge 2CH:
- 2 independent channels with bi-directional SDI/HDMI to Full NDI conversion
- Supports up to 4Kp60 resolution for both input and output
- 1U rack-mountable design ideal for space-constrained environments
- Full NDI protocol support with ultra-low latency performance
- Simultaneous encoding and decoding on each channel
- High-quality 10-bit video processing and color fidelity

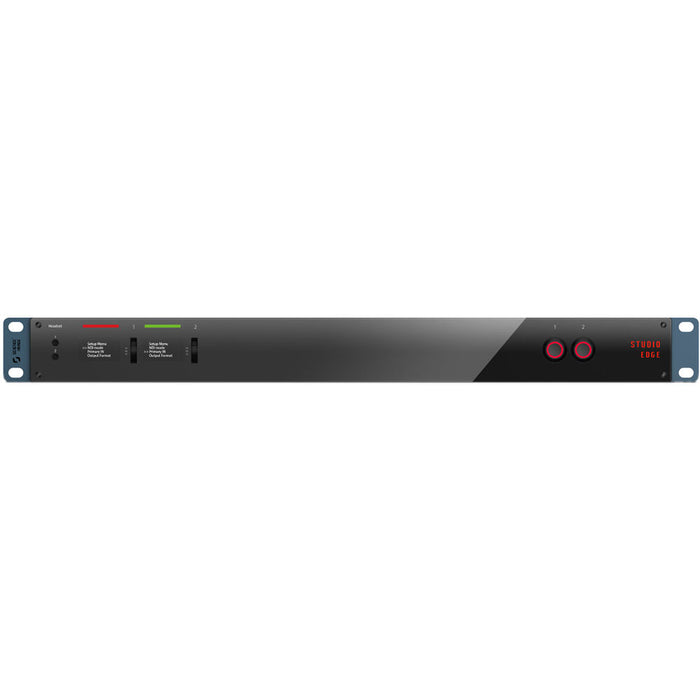

- Front-panel LCD for system monitoring and configuration
- Redundant power supply support for critical operations
- Integrated Web UI and NDI Tools compatibility for easy control
- Ideal for broadcast studios, live event streaming, and hybrid IP workflows
The Detailed Specifications for the Science Image Studio Edge 2CH:
- Channels: 2 independent video channels with simultaneous encode/decode
- Video Input: SDI (12G/6G/3G/HD/SD) and HDMI 2.0
- Video Output: SDI (loop or converted) and HDMI 2.0
- Resolution Support: Up to 4Kp60 (3840x2160)
- Video Codec: Full NDI (NDI|HX not required)
- Color Depth: 10-bit processing with full 4:2:2 support
- Audio Support: Embedded audio passthrough and NDI audio mapping
- Latency: Sub-frame latency with optimized real-time streaming

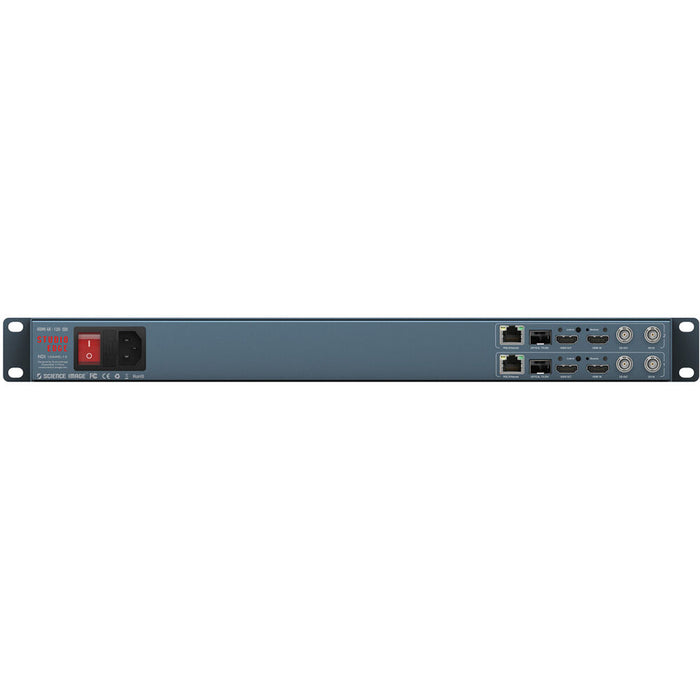

- Network: Dual Gigabit Ethernet with NDI multicast and unicast support
- Control Interface: Web-based UI, NDI Tools, and front panel LCD
- Mounting: 1U rack-mount chassis with integrated cooling
- Power: Dual redundant 12V DC inputs (AC adapters included)
- Operating Temperature: 0°C to 45°C (32°F to 113°F)
- Dimensions: 19” x 1.75” x 10” (W x H x D)
- Weight: 2.5 kg (5.5 lbs)
