Science Image Studio Edge 3CH – 3-Channel 1U Rack-Mount Bi-Directional 4K SDI / HDMI Full NDI Converter
Availability:
In stock 3-5 days
Original price
$4,100.00
-
Original price
$4,100.00
Original price
$4,100.00
$4,100.00
-
$4,100.00
Current price
$4,100.00
| /

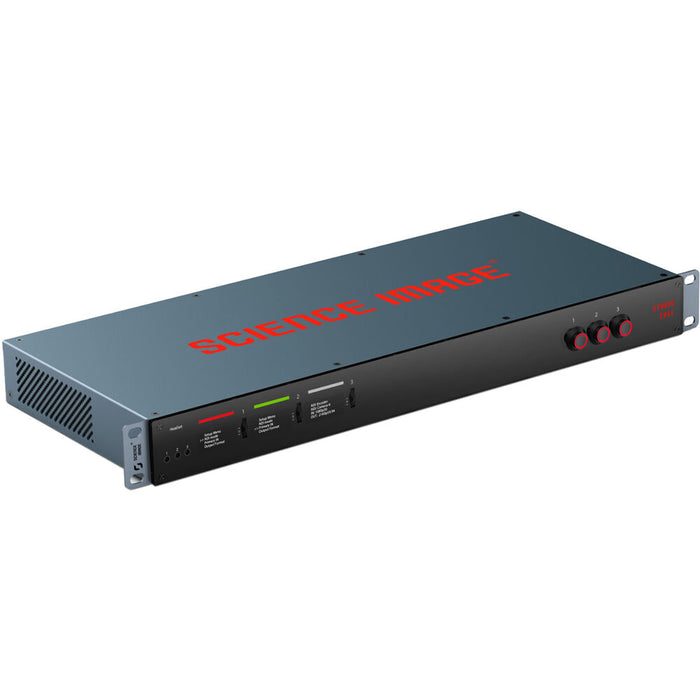

The Science Image Studio Edge 3CH is a professional-grade 3-channel bi-directional converter engineered for high-end live production and broadcast environments. Designed to handle ultra-high-definition video workflows, it features full 4K SDI and HDMI support with native Full NDI encoding and decoding capabilities. Housed in a compact 1U rack-mount chassis, the Studio Edge 3CH offers unmatched flexibility by supporting simultaneous encode/decode on three separate channels. Whether you're integrating into a multi-camera setup, streaming live events, or extending AV over IP infrastructures, this converter delivers exceptional image quality, low-latency performance, and seamless interoperability across production pipelines.
The Key Features of the Science Image Studio Edge 3CH:
- Bi-directional conversion between 4K SDI / HDMI and Full NDI
- Three independent input/output channels in a 1U rack-mount chassis
- Supports resolutions up to 4Kp60 for high-quality video workflows
- Native Full NDI protocol for low-latency, high-fidelity IP video
- Simultaneous encode and decode across all channels
- Professional-grade SDI and HDMI I/O connectors
- Integrated web interface for remote control and configuration
- Ideal for broadcast, production, and live event streaming
- Robust metal chassis with efficient thermal management
- Compatible with Windows, macOS, and leading NDI tools
The Detailed Specifications for the Science Image Studio Edge 3CH:
- Form Factor: 1U Rack-Mount
- Channels: 3 independent I/O paths (bi-directional)

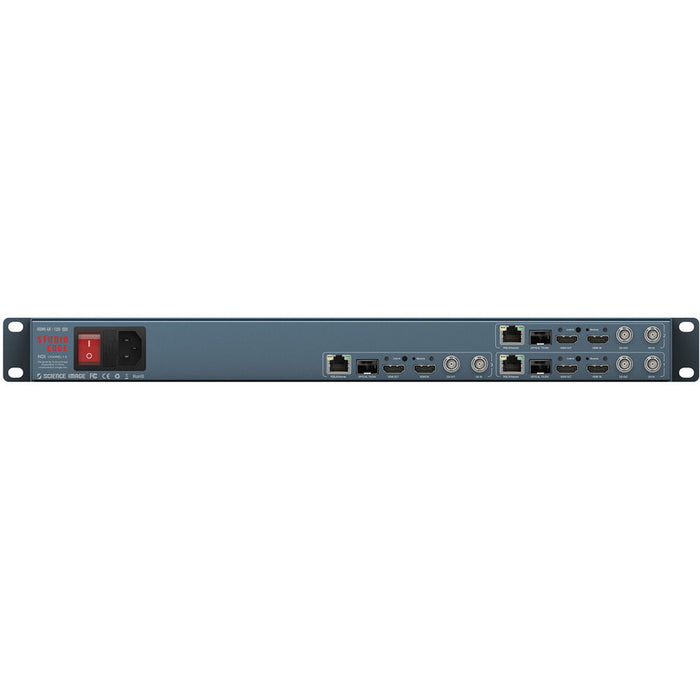

- Video Inputs: 3 x 12G/6G/3G/HD-SDI and 3 x HDMI 2.0
- Video Outputs: 3 x 12G/6G/3G/HD-SDI and 3 x HDMI 2.0
- Supported Resolutions: Up to 4Kp60 (3840x2160 @ 60Hz)
- NDI Support: Full NDI (encode and decode)
- Network Interface: 2 x RJ45 Gigabit Ethernet (NDI streaming & control)
- Latency: Sub-frame latency with Full NDI protocol
- Audio: Embedded audio passthrough via SDI and HDMI
- Control Interface: Web UI, REST API
- Power Supply: 100-240V AC (internal PSU)
- Chassis Material: Industrial-grade aluminum alloy
- Cooling: Active cooling with low-noise fans
- Dimensions: 19” x 1.75” x 9.5” (W x H x D)
- Weight: 7.5 lbs (3.4 kg)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
