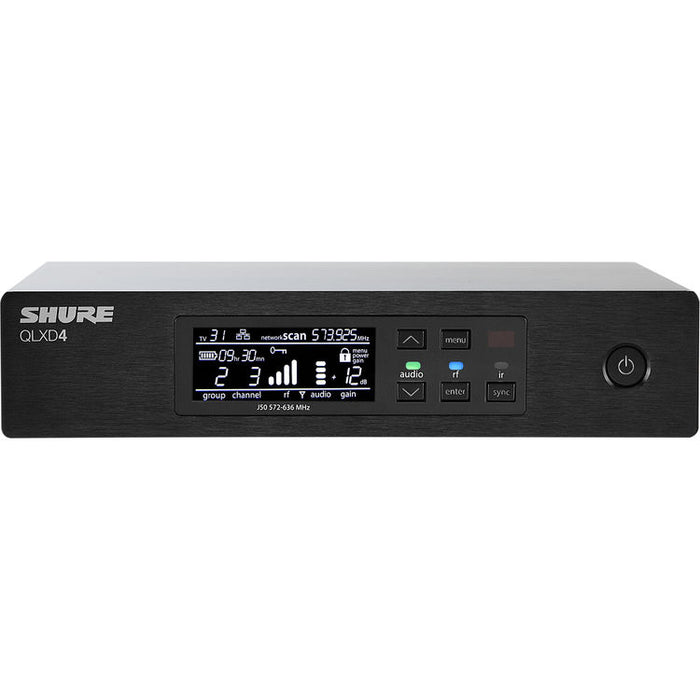

Shure QLXD4 Digital Wireless Receiver (V50: 174 to 216 MHz)

by Shure
Availability:
Low stock
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.

SKU: QLXD4-V50

The Shure QLXD4 Digital Wireless Receiver (V50) delivers professional-grade wireless audio performance for live sound, worship, broadcast, theater, education, and corporate AV applications. Designed for use with Shure QLX-D digital wireless transmitters, the QLXD4 combines crystal-clear 24-bit digital audio, dependable RF performance, and efficient spectrum management in a compact half-rack receiver design.

Operating within the V50 frequency band, the QLXD4 provides reliable wireless reception with advanced automatic channel scanning and infrared synchronization for fast and efficient system setup. The receiver supports AES 256-bit encryption for secure wireless transmission, making it ideal for professional production environments requiring protected and dependable audio communication.

The front-panel LCD display provides intuitive access to frequency coordination, channel settings, audio metering, RF signal strength, and transmitter battery status. Ethernet networking enables remote monitoring and control through Shure Wireless Workbench software for advanced frequency coordination and multi-channel wireless management.

Built for professional touring and installed AV environments, the QLXD4 features rugged construction, versatile audio output connectivity, and reliable wireless performance for live events, broadcast productions, worship facilities, educational institutions, and corporate AV systems.

The Key Features of Shure QLXD4 Digital Wireless Receiver (V50):

  • Wireless Technology: QLX-D digital wireless receiver, reliable RF performance, efficient spectrum management
  • Frequency Range: V50 band, 174 to 216 MHz
  • Audio Quality: 24-bit digital audio, wide dynamic range, clear signal reproduction
  • Encryption: AES 256-bit encryption for secure wireless transmission
  • Receiver Type: Half-rack digital wireless receiver
  • Synchronization: Infrared sync for fast pairing with compatible QLX-D transmitters
  • Automatic Scanning: Automatic channel scanning and frequency selection
  • Networking: Ethernet networking for Wireless Workbench software integration and remote management
  • User Interface: Backlit LCD display with RF metering, audio metering, battery monitoring, and channel information

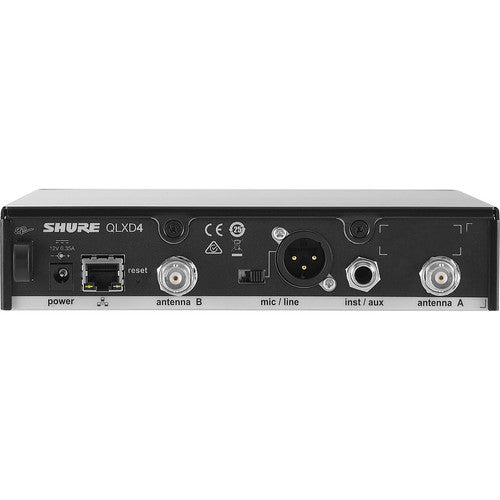

  • Audio Outputs: XLR balanced output, 1/4 inch instrument output
  • Antenna Design: Detachable external antennas for flexible installation
  • Rackmount Options: Includes hardware for single or dual receiver rackmount installation
  • Applications: Live sound, worship, theater, broadcast, education, corporate AV, and touring productions

The Detailed Specifications for the Shure QLXD4 Digital Wireless Receiver (V50):

  • Model: QLXD4-V50
  • Product Type: Digital wireless receiver
  • Compatible Systems: Shure QLX-D Digital Wireless Systems
  • Frequency Band: V50, 174 to 216 MHz
  • Receiver Configuration: Single-channel receiver
  • Audio Resolution: 24-bit digital audio
  • Dynamic Range: Greater than 120 dB
  • Encryption: AES 256-bit
  • Frequency Coordination: Automatic channel scan and selection
  • Synchronization Method: Infrared
  • Display Type: Backlit LCD screen
  • Audio Outputs: XLR balanced, 1/4 inch TS output
  • Networking: Ethernet connection for Wireless Workbench integration
  • Antenna Connections: Dual detachable external antennas
  • Rackmount Compatibility: Half-rack chassis with included rackmount hardware
  • Power Supply: External power supply included
  • Housing Material: Metal chassis
  • Applications: Professional wireless audio, live production, broadcast, worship, corporate AV, education
  • Included Accessories: Power supply, antennas, rackmount hardware, user documentation

No video available for this product.
