Switchblade Systems LPU4 Elite-Replay 1-Channel 240 fps Replay Server Bundle
Original price
$19,995.00
-
Original price
$19,995.00
Original price
$19,995.00
$19,995.00
-
$19,995.00
Current price
$19,995.00
| /
SKU: SWBS-LPU4-ER-F240-QDCAM-BDL

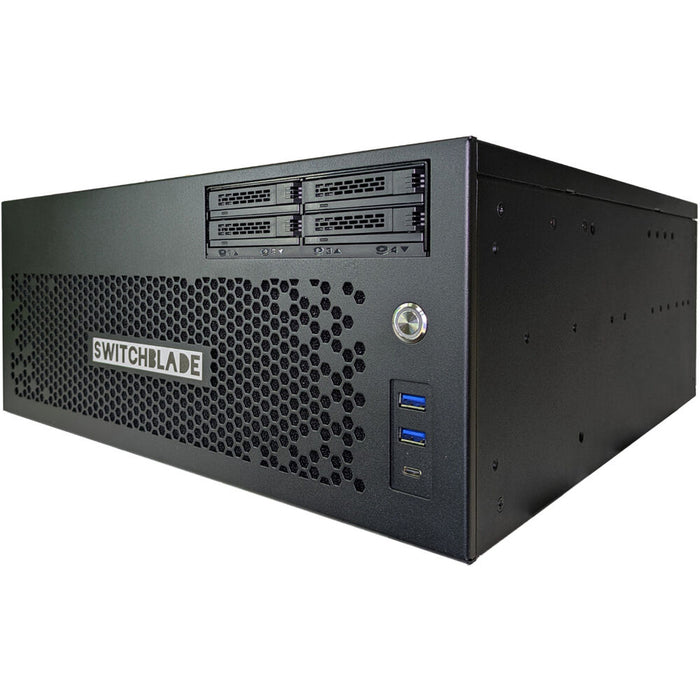

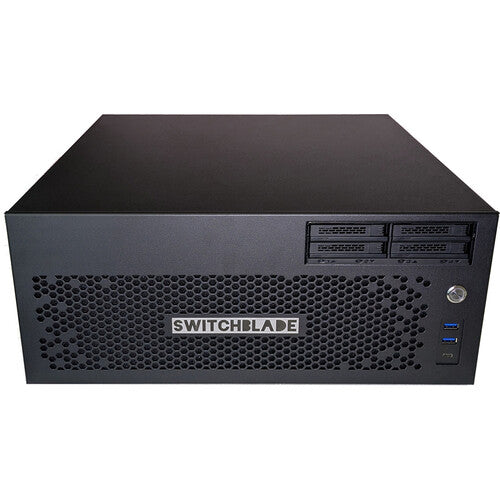

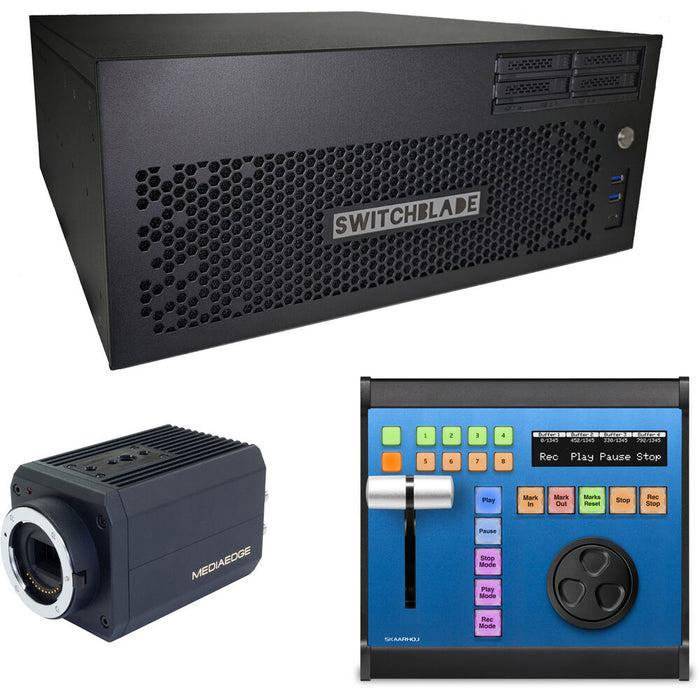

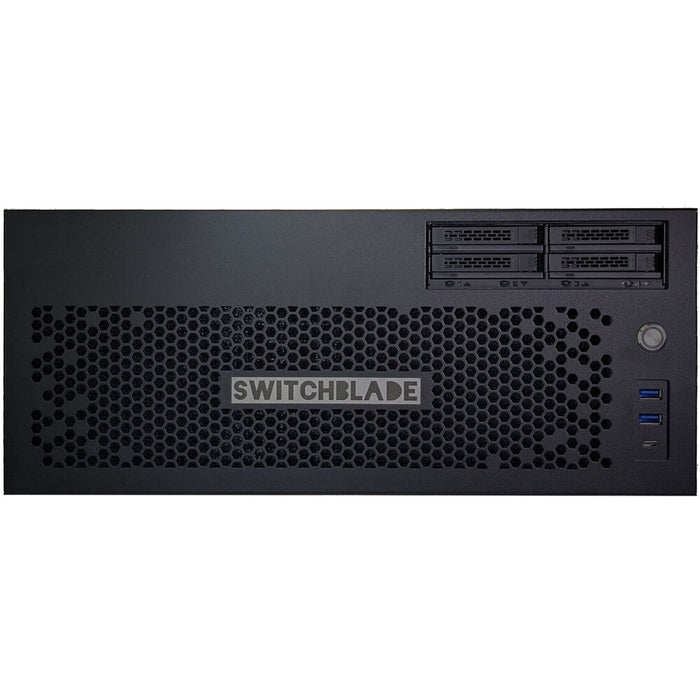

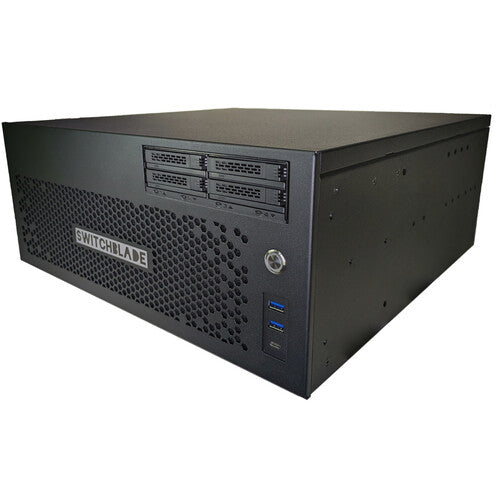

The Switchblade SWBS-LPU4-ER-F240-QDCAM-BDL is a comprehensive high-performance replay server bundle designed for professional sports and live event broadcasting. Featuring the LPU4 Elite-Replay server, this system delivers ultra-smooth slow-motion playback at up to 240 frames per second with 1-channel ingest and replay capabilities. Bundled with a high-speed QDCAM camera, this turnkey solution provides broadcast-quality replay for any production environment. With robust encoding, intuitive control, and rapid replay workflow, the LPU4 Elite-Replay is engineered for demanding field and studio applications.
The Key Features of the Switchblade SWBS-LPU4-ER-F240-QDCAM-BDL:
- 1-channel ingest and 1-channel replay in real-time up to 240 fps

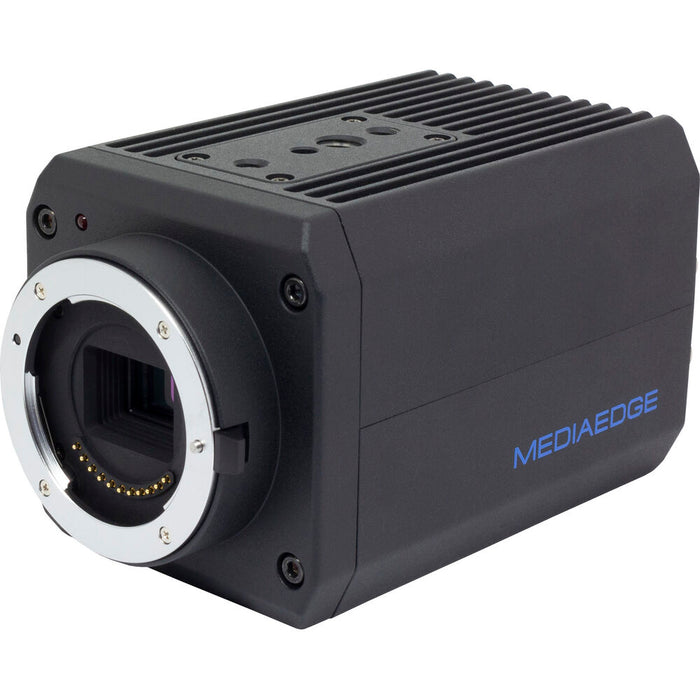

- Integrated high-speed QDCAM camera included
- Broadcast-quality H.264 and ProRes encoding
- Instant replay functionality with intuitive control interface
- Compact and portable LPU4 form factor
- Support for HD-SDI and IP video inputs
- Multi-speed playback and slow-motion control
- Network-ready for live production environments
The Detailed Specifications for the Switchblade SWBS-LPU4-ER-F240-QDCAM-BDL:
- Model: SWBS-LPU4-ER-F240-QDCAM-BDL
- Server Type: LPU4 Elite-Replay
- Replay Channels: 1-channel ingest, 1-channel replay
- Maximum Frame Rate: 240 fps
- Video Input: HD-SDI, IP video
- Video Output: SDI and HDMI options
- Storage: High-speed SSD storage system
- Encoding Formats: H.264, Apple ProRes
- Camera Included: QDCAM high-speed replay camera
- Control Interface: Dedicated replay control UI
- Network Connectivity: Gigabit Ethernet
- Form Factor: Compact LPU4 chassis
- Power: AC input 100–240V, 50/60Hz
- Dimensions: Approx. 10" x 8" x 2.5"
- Weight: Approx. 5 lbs (2.3 kg)
