Switchblade Systems LPU4 vMix Pro Switcher with Bluefish444 Kronos K8 8-Channel SDI I/O
Original price
$15,995.00
-
Original price
$15,995.00
Original price
$15,995.00
$15,995.00
-
$15,995.00
Current price
$15,995.00
| /

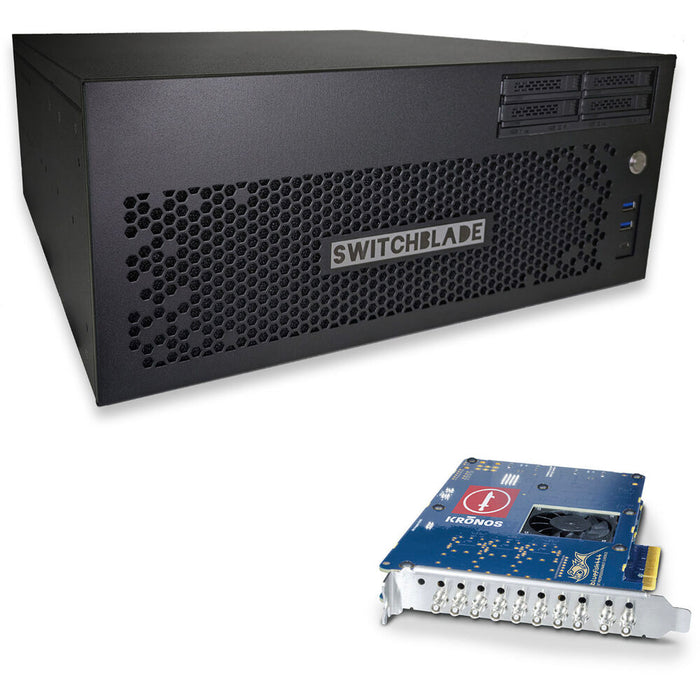

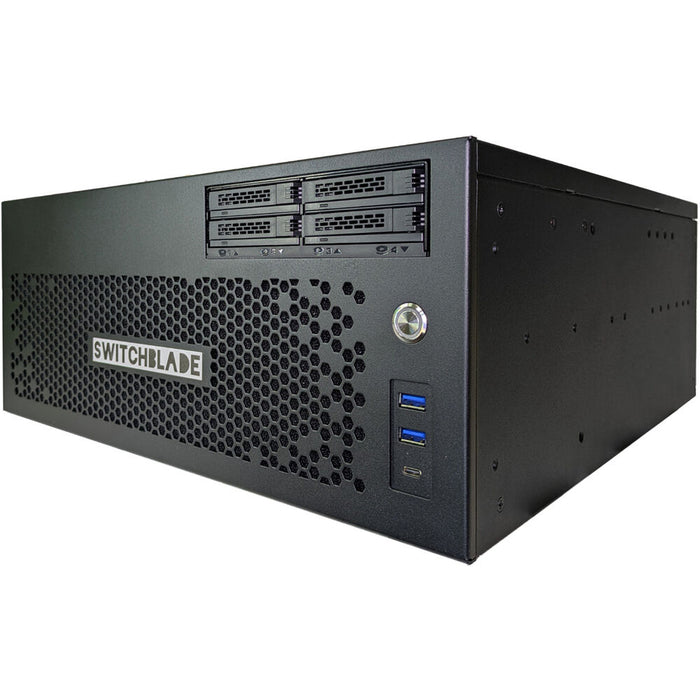

The Switchblade SWBS-LPU4-K8-VMP LPU4 vMix Pro Switcher is a high-performance, rackmount live production system engineered for professionals demanding real-time switching, graphics, and streaming. Paired with the Bluefish444 Kronos K8 video card, it delivers 8 channels of ultra-low latency 3G/HD/SD-SDI I/O, enabling flexible ingest and output configurations. Designed for demanding broadcast environments, the LPU4 leverages the full capabilities of vMix Pro with support for live 4K switching, instant replay, chroma keying, and NDI. Built into a rugged 2U chassis, the unit is powered by Intel Xeon processing and a powerful NVIDIA RTX GPU for reliable, fluid live productions.
The Key Features of the Switchblade SWBS-LPU4-K8-VMP LPU4 vMix Pro Switcher:
- Pre-installed with vMix Pro live production software
- Integrated Bluefish444 Kronos K8 card with 8-channel 3G-SDI I/O
- Supports resolutions up to 4K for live switching and streaming
- Dual redundant power supplies for mission-critical reliability
- Professional 2U rackmount chassis with optimized cooling
- NDI support for network-based video sources and outputs
- Intel Xeon processor and NVIDIA RTX GPU for high-speed performance
- Expandable storage for media playback and recording
- Flexible SDI routing with software-defined input/output assignment
- Compatible with PTZ camera control, instant replay, and titling
The Detailed Specifications for the Switchblade SWBS-LPU4-K8-VMP LPU4 vMix Pro Switcher:
- Model: SWBS-LPU4-K8-VMP
- Software: vMix Pro pre-installed and licensed
- Video Card: Bluefish444 Kronos K8
- SDI I/O: 8x configurable 3G-SDI inputs/outputs
- Processor: Intel Xeon W-series
- GPU: NVIDIA RTX professional graphics
- RAM: 64GB DDR4 ECC memory
- Storage: 1TB NVMe SSD (OS), 4TB HDD (media), expandable
- Networking: Dual 1GbE LAN ports
- Chassis: 2U rackmount with front-access I/O and cooling
- Power: Dual redundant 750W power supplies
- Operating System: Windows 11 Pro 64-bit
- Connectivity: USB 3.0, HDMI, DisplayPort, XLR/Audio optional
- NDI Support: Full compatibility with NDI input/output workflows
- Applications: Broadcast, live event production, corporate AV, worship, education
