Switchblade Systems M9 Pro vMix Desktop Live Production System (3G-SDI)
Original price
$5,995.00
-
Original price
$5,995.00
Original price
$5,995.00
$5,995.00
-
$5,995.00
Current price
$5,995.00
| /
The Switchblade SWBS-M9-4SDI-PRO is a premium desktop live production system designed for professional-grade streaming and video switching. Built to support complex productions, it integrates the powerful vMix software platform with four 3G-SDI inputs and 4K support, enabling seamless multi-camera workflows. Whether for broadcast studios, churches, live events, or corporate productions, the M9 Pro delivers the performance and reliability demanded by high-end users. Engineered in a compact yet durable chassis, it offers the connectivity and horsepower needed to manage advanced live productions with ease.
The Key Features of the Switchblade SWBS-M9-4SDI-PRO:
- Includes vMix Pro software for advanced live production and streaming
- Four 3G-SDI inputs with support for full HD and 4K video
- Intel Core i9 processor for high-performance video processing
- NVIDIA RTX GPU for smooth graphics rendering and encoding
- Multi-channel ISO recording and live switching capabilities
- Dual 1GbE network ports for redundant or split-stream configurations
- Quiet, professional desktop chassis with efficient cooling
- Flexible output options including HDMI and SDI for multi-display setups
- Supports NDI, SRT, and RTMP protocols for wide compatibility
- Ideal for churches, studios, government, and education applications
The Detailed Specifications for the Switchblade SWBS-M9-4SDI-PRO:
- Model: SWBS-M9-4SDI-PRO
- Video Inputs: 4x 3G-SDI (DeckLink Quad 2 capture card)
- Processor: Intel Core i9 (13th Gen or higher)
- Graphics: NVIDIA RTX Series GPU (RTX 4060 or better)
- Memory: 32GB DDR4 RAM
- Storage: 1TB NVMe SSD (OS & vMix), 2TB HDD (Media Storage)
- Operating System: Windows 11 Pro
- Software: vMix Pro (Activated)
- Network: 2x 1Gb Ethernet Ports

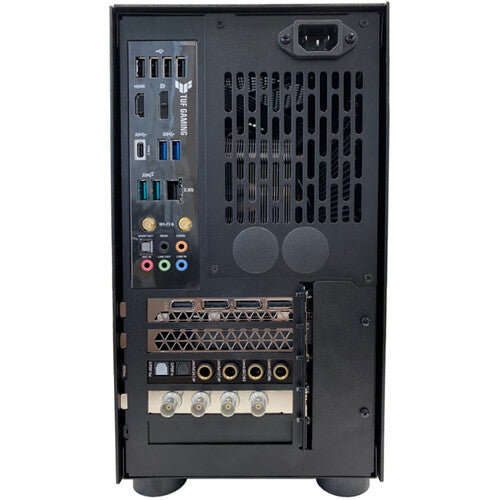

- Outputs: 1x HDMI, 1x DisplayPort, 2x SDI (Program/Multiview via vMix)
- Audio: Realtek HD Audio, optional audio interface via USB

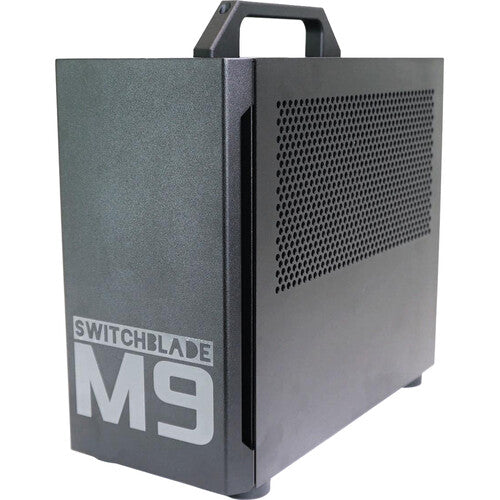

- Chassis: Compact Desktop Form Factor, quiet operation
- Power Supply: 650W 80+ Gold Certified
- Dimensions: Approx. 13” x 9” x 14” (L x W x H)
- Weight: Approx. 18 lbs (8.2 kg)
- Protocols Supported: NDI, SRT, RTMP, RTSP, MPEG-TS
- Warranty: 1-Year Limited Hardware Warranty
